FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester

FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester

FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester
FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester
FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester
Product Details:
Place of Origin: china
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S33
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Name: Flammability Test Equipment Fire Nozzle Diameter: 9.5mm
Fire Height: 38mm+/-2 Distance From Nozzle To Sample: 19mm
Weight: 18 Kg Dimensions: 460×200×400 Mm (LxWxH)
Highlight:

abrasion testing equipment

,

physical testing equipment

Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester FMVSS 302


Product information

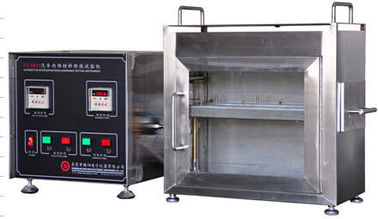

Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Horizontal flammability tester is safe and easy to operate, Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
Automatic gas and timing control system including solenoid control gas valve and automatic ignition timer and controls.


Technical specifications

 Fire nozzle diameter  9.5mm
 Fire height  38mm+/-2
 Sample clamp  360x100mm
 Interior Dimension  330x50mm
 The sample below  25mm Pitch between metal wires is 25mm
 Marked line  Starting point 38mm/End point 292mm from Igniting point
 Distance from Nozzle to Sample  19mm
 Power  220 /110 V 50/60 Hz 2 A
 Weight  18 KgV
 Dimension for the flammability chamber  381mm×203mm×356mm
 Dimensions  460×200×400 mm (LxWxH)


Testing standards
ISO 3795, FMVSS 302,DIN 75200,SAE J369, ASTM D5132,JIS D1201,BSAU 1690

FMVSS 302 Lab Testing Equipment Fire Nozzle Diameter 9.5mm Horizontal Flammability Tester 0
