Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | CN |
| Brand Name: | SKYLINE |
| Certification: | Calibration Certificate |
| Model Number: | SL-S18T |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 2 pcs/ month |
| SKYLINE: | Fabric Vertical Flammability Tester | Flame Height: | 25 Mm / 40 Mm |
|---|---|---|---|
| Marker Threads: | 45 Tex To 50 Tex | Volume: | 80x52x80 Cm (WxDxH) |
| Fire Mouth Angle: | 0 ° / 30 °, 90 ° | Specimen Holders: | 12 Pcs |
| Standard: | ISO6941,ISO6940 | ||
| High Light: | physical testing equipment,brake testing equipment |
||

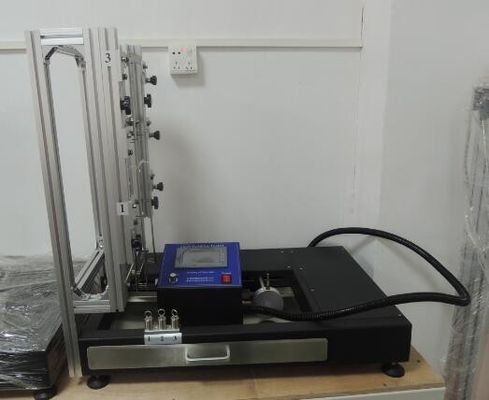

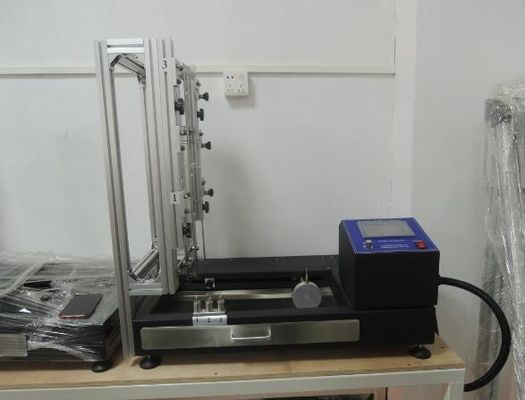

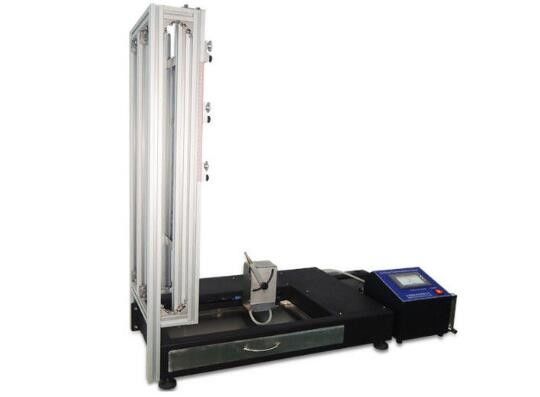

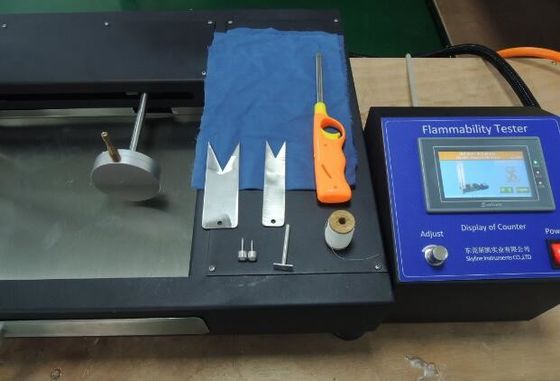

ISO 6941 Textile Fabrics Vertical Burning Tester
Description
ISO6941 Textile Fabrics Vertical Burning Tester is used for testing the textile fabrics burining behaviour.Measurement of flame spread properties of vertically oriented specimens.
It is also applicable to all kinds of textile material of flammability test;
Specifications
| The ignition time setting range | 0 ~ 99.99 s |
| The combustion timing range | 0 ~ 999.9 s |
| Fire mouth Angle | with the horizontal Angle: 0 ° / 30 °, 90 ° can be adjusted |
| The test flame height | 25mm / 40 mm |
| Specimen holders | 12 pcs |
| Marker Threads | 45 tex to 50 tex |
| Combustion gas | commercial grade propane or butane or butane/propane mixtures |
| Volume (WxDxH) | 80x52x80 cm (WxDxH) |
| Weight (about) | 45 kg |
| Power supply | 1∮ AC 220V 50Hz |
| Test Standards | BS EN ISO 6940,EN ISO 6941 |
Fabric Vertical Flammability Tester 2.pdf
Please review video of the ISO 6941 Textile Fabrics Vertical Burning Tester operation as below link:
https://youtu.be/X6zSjz2_QZI
Contact Person: Kasey Xie
Tel: 18370826024
