Name: PLC + NA View Professional Software Fireproof Coating Tester Method of Large Plate
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-DBF
Price: 4,500.00 USD
Availability: InStock

Home Products Lab Testing Equipment

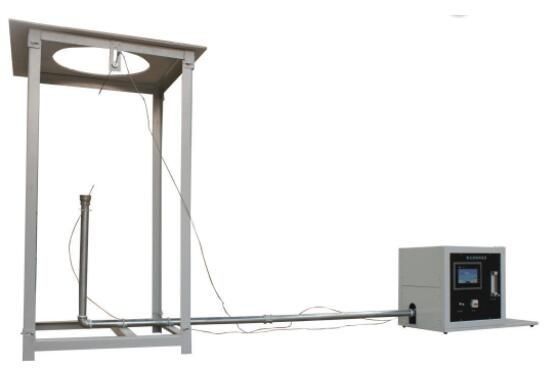

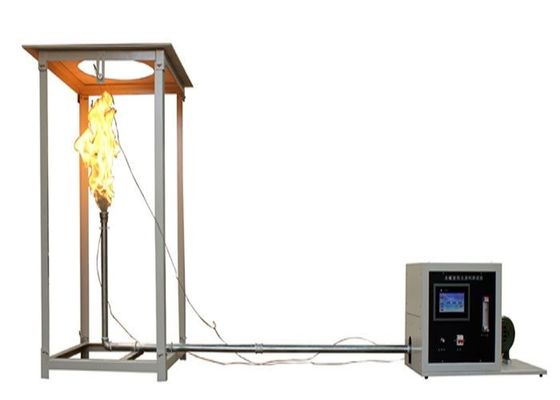

PLC + NA View Professional Software Fireproof Coating Tester Method of Large Plate

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration Certificate
Model Number:	SL-DBF

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	35 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Fireproof-Coating-Tester	Voltage And Power:	220V±10%. 50Hz,300W
Air Volume Of Blower:	(1-5) M³/min	Timer Error:	≤ 1s/h
Relative Humidity:	≤85%	Gas Source:	Liquefied Petroleum Gas
Highlight:	physical testing equipment , brake testing equipment

PLC+NA View Professional Software Fireproof-Coating-Tester (Method of large plate)

Technical parameters

1.PLC+NA view professional software, touch screen control, easy operation

2. Voltage and Power: 220V±10%. 50Hz,300W

3. Working Environment: indoor , no forced ventilation

4. Air Volume of Blower: (1-5) m³/min

5. Armored Thermocouple: Outer diameter ≤3mm, Wire diameter 0.5mm , Accuracy ≥II level,Range 1300℃

6. Timer Error ≤ 1s/h

7. Backfire five-way thermocouple temperature,alarm when it comes to 220℃

8.Environmental Temperature: -5℃-30℃

9. Relative Humidity: ≤85%

10. Gas Source: Liquefied petroleum gas

11. Instrument Dimensions: Test plate bracket 760mm*760mm*1500mm

Control box 800mm*500mm*500mm

12. Specimen Size: 900mm*900mm*5mm +0.2mm Plywood of five layers of first level

13. Time of Automatic Controlling——Temperature Rise and Record

14.Alarm when temperature of time back fire comes 220℃

Fireproof-Coating-Tester.pdf
