Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD |
| Packaging Details: | plywood case |
| Delivery Time: | 35 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit/ month |
| SKYLINE: | Flooring Materials Flammability Test Apparatus | Standards: | ISO 6925, BS 6307 |
|---|---|---|---|
| Inner Box Size: | 380x380x380mm | Volume (WxDxH): | 20x25x48cm |
| Material: | Stainless Steel | Weight: | ≈5.5Kg |
| High Light: | lab testing equipment,vertical flammability chamber |
||

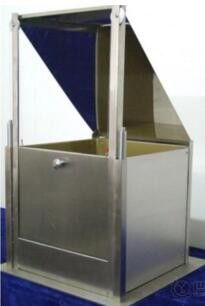

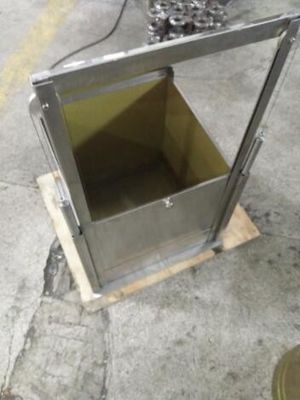

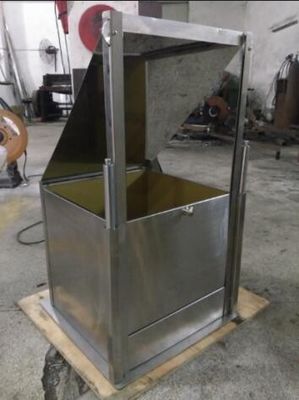

ISO 6925, BS 6307 Flooring Materials Flammability Test Apparatus
Application
This machine is suitable for testing the surface burning performance of carpets under controlled laboratory conditions when exposed to small fire sources in a horizontal position.
Technical Parameters
| Inner box size | 380x380x380mm |
| Tablet method cover plate | 230x230mm |
| Thickness | 6.5mm |
| Intermediate hole diameter | 205mm |
| Hot metal nut method cover | inner diameter 250mm |
| Metal nut | M16 |
| Volume (WxDxH) | 20x25x48cm |
| Weight (approx.) | ≈5.5Kg |
Features
1. Stainless steel box with refractory board inside
2. equipped with a viewing mirror to facilitate observation of samples
3. Provide standard metal sample plate
4.provide urotropine standard pills
5. can provide stainless steel nuts, can withstand 900 ° C high temperature
Test methods
Hot nut method: The stainless steel nut is heated to 900 ° C in a muffle furnace. The test sample is placed in the test box, and the clamp ring is placed on the sample with a pliers. The heated nut is placed in the center of the card ring. After 30 seconds, the nut is removed, and then the measurement can be performed to evaluate the sample. The spread of fire.
Urotropine Pill Method: The test sample is placed in the test box, the card ring is placed on the sample, the standard pill is ignited, and after the flame is extinguished, the measurement can be performed to evaluate the combustion effect.
Standards
ISO 6925；ASTM E648; CFR 1630/1631; BS 6307,BS 4790
