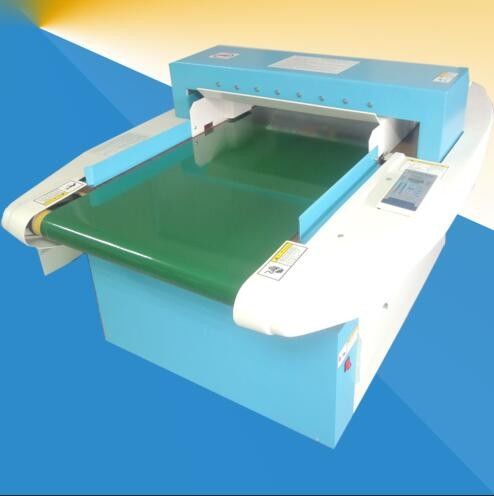

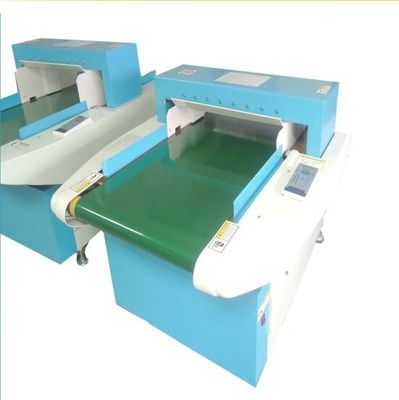

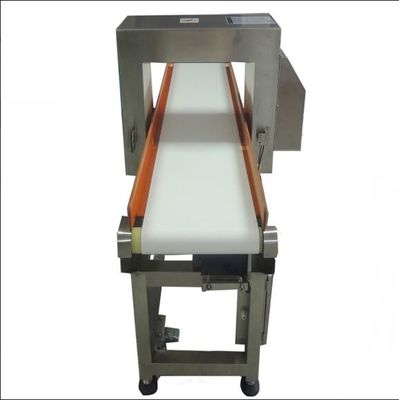

Full Digital Metal Detector Lab Testing Equipment 7 Inch Touch Full Color LCD Display
Product Characteristic
1. Double-circuit electromagnetic wave detection, the combination of new analog circuit and digital circuit, greatly improves the reliability and intelligence of the product.
2. Using new touch screen input and large-scale integrated circuit, the CPU completes the analog signal collection and converts it into digital quantity for processing and output, and automatically searches for the best point of the detected metal content, which greatly improves the sensitivity and reliability of the detection. .
3. Using humanized interface design, the whole operation process is simple and intuitive, the human-machine interface is clear at a glance, all functions can be directly operated on the screen to complete the functions performed.
4.Can set a variety of required functions and modes, with automatic detection.
5.The sensitivity can be adjusted in the range of 20-90, the threshold can be adjusted in the range of 1-20
6. When a trace amount of metal is detected, the sound and light are simultaneously alarmed, and the machine stops or rejects the unqualified product.
7. This equipment adopts single-chip computer to form a control system. According to the special requirements of users, it can complete the statistics of the number of detected objects, the classification of non-conforming products, and the separation of multiple devices at the same time.
Technical Parameters
| Detection method |
electromagnetic wave detection |
| Display screen |
7-inch touch full color LCD display |
| Operation mode |
touch operation |
| Effective detection width |
40CM (can be customized according to customer needs) |
| Effective detection height |
10CM (can be customized according to customer needs) |
| Sensitivity |
20-90 adjustable |
| Phase |
1-359 adjustable |
| Frequency |
can be fine-tuned (do not mess) |
| Volume |
1-7 adjustable |
| Alarm time |
1-10 seconds adjustable |
| Counter |
Have, with anti-jamming function |
| Load-bearing |
5-25KG
|
| Material |
stainless steel wire drawing process
|
|
Machine weight
|
150KG |
1. Detection sensitivity: iron ball: 0.8-3.0mm, stainless steel: 1.5-5.0mm (affected by product and environment)
2. Alarm mode: buzzer alarm, motor automatically stop (or motor operation, reject device work)
3. Conveyor speed: 20 m / min (can be customized according to customer needs)
4. Power: 220VAC, 50Hz (can be customized according to customer needs) Power: 300W
5. The size of the appearance: 165cm (length) * 80cm (width) * 90cm (height) (can be customized according to customer needs)
