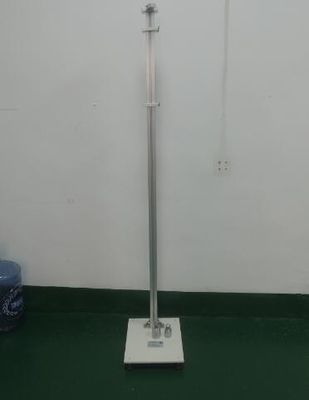

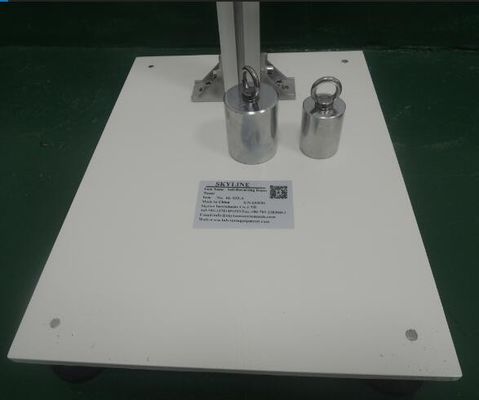

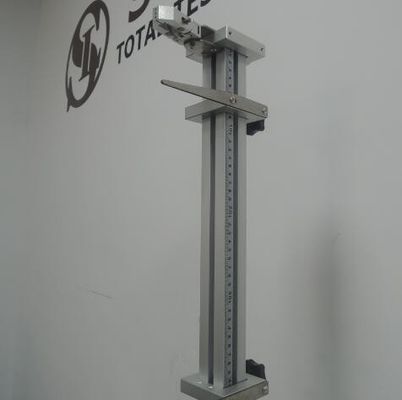

ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension

ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension

  • ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension
  • ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension
  • ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension
  • ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension
ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-S32-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: carton box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Self-Retracting Ropes Tester Standards: ISO8124-1,ASTM F963
Material: Stainless Steel Load: 0.9kg,0.45kg
Dimension: 50x50x175cm Weight: 16kg
High Light:

stability test chamber

,

swings testing equipment

Stainless Steel Self-Retracting Ropes Tester



Applications

Used to test the force of self-retraction mechanisms for self-retracting cords toys.

Using a suitable clamp, position the toy so that the cord is vertical and the toy is in the most favourable
position for retraction. Extend the cord fully and attach a mass of (0,9 ~:g5 )k9.
For monofilament cords less than 2 mm in diameter, attach a mass of (0,45 +g:g5 )k9 .
Determine whether the cord retracts more than 6,4 mm.

Technical Parameter
 Load  0.9kg,0.45kg
 Dimension  50x50x175cm
 Weight  16kg



Standards
ISO8124-1,ASTM F963


ASTM F963 Stainless Steel Self Retracting Ropes Tester 50x50x175cm Dimension 0
