Name: ISO 8121-4 Electroplating Steel Toys Testing Equipment Loads For Stability Test
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S44-A
Price: 4,500.00 USD
Availability: InStock

Home Products Toys Testing Equipment

ISO 8121-4 Electroplating Steel Toys Testing Equipment Loads For Stability Test

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	Calibration certificate
Model Number:	SL-S44-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	carton box
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit

Contact Now

Detailed Product Description

SKYLINE:	Loads For Stability Test	Standards:	ISO 8121-1 2014
Material:	Electroplating Steel	Test Load For Scooters:	Between 25 Kg And 50kg
Warranty:	18 Months
Highlight:	swing durability tester , swings testing equipment

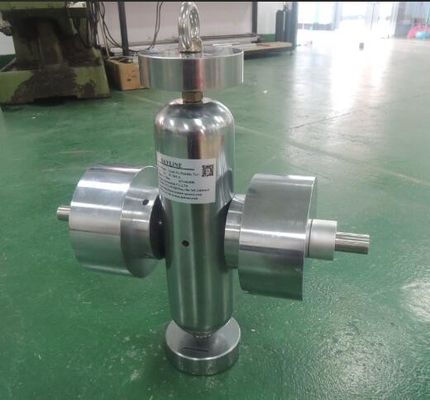

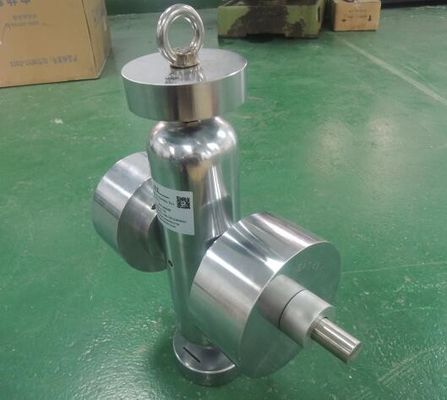

Electroplating Steel Loads for Stability Test

Product Information

Apply the load so that the major axis is perpendicular to the true horizontal while the toy is on the
specified incline. Design the load so that the height of its centre of gravity is (220 ± 10) mm above
the seat surface. For toy scooters, however, use a test load with dimensions as specified in Figure 30.
For all ride-on toys, secure the centre of gravity of the load both (43 ± 3) mm rearward of the frontmost
portion of the designated seating area, and (43 ± 3) mm forward of the rear-most portion of the
designated seating area.
NOTE This involves two separate tests,
If there is no designated seating area, place the load at the least favourable position in which it is
reasonable to anticipate that a child will choose to sit or stand.
Observe whether the toy tips over within 1 min after application of the load.

Table-- Loads for stability test

Age group

Load

Under 36 months

25±0,2

36 month and over

50±0,5

Standard

ISO 8121-1 2014
