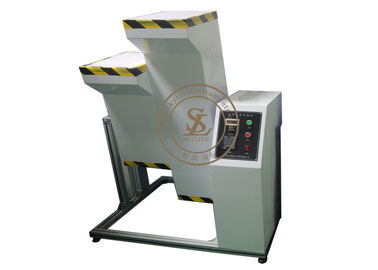

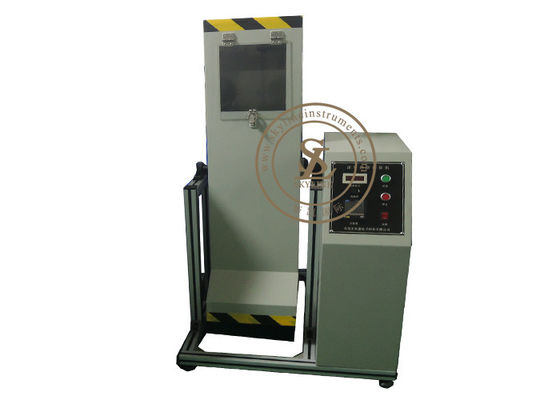

Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester

Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester

  • Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester
  • Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester
Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-M008
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
Multi-angle Dropping Fixture: 0°, 45°, 90° Max Tested Weight: 2Kg
Dropping Plate: Steel Plate, Cement Floor, Wooden Plate Air Pressure: ≥0.5MPa
Main Unit Weight: 245Kg
High Light:

abrasion testing equipment

,

brake testing equipment

SL-M008 Mobile Phone Drop Tester

Apply for mobile, phone earphone, interphone, MP3, CD, electronic dictionary, and the other electronic devices or parts. For checking the device quality after N times free dropping off from a stated height and different side, corner and face.



 Multi-angle dropping fixture  0°, 45°, 90°
 Dropping height indicator Digital display  1mm Min
 Effective dropping height  300~1800mm (optional 2000mm)
 Max tested weight  2Kg
 Dropping plate  Steel plate, cement floor, wooden plate
 Dropping area   500x600mm
 Air pressure  ≥0.5MPa
 Dimension   (WxDxH) 800x900x2200mm
 Main unit weight   245Kg
 Power supply   AC220V 50Hz 5A or specified by user





Multi-Angle Dropping Fixture 0°, 45°, 90° SL-M008 Mobile Phone Drop Tester 0

Tag:

physical testing equipment,

brake testing equipment,

abrasion testing equipment
