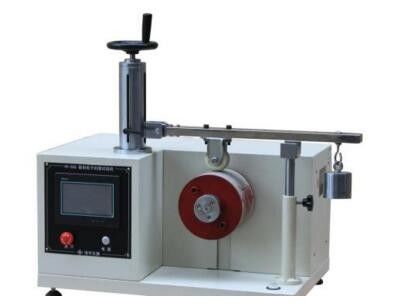

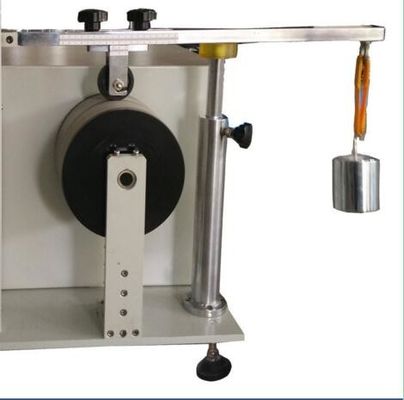

Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment

Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment

  • Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment
  • Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment
  • Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment
Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: calibration certificate
Model Number: SL-TL05
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 35 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Luggage Wheel Wear Tester Test Speed: 0-10km/hr Adjustable
Load: Max 50 Lb Up And Down: MAX: 300 Mm
Dimension: 620×450×650mm LxWxH Weight: 150kg
Highlight:

abrasion testing equipment

,

physical testing equipment

50kg Wheel Core Load Luggage Wheel Wear Tester



Product Application

Suitcase wheel Abrasion Testing instrument used to test the abrasion resistance of running a small wheel, such as suitcases, roller skates, prams and trolleys ... , the cement wheel drive luggage wheels with a certain load, According to this method simulation of the suitcase running on the ground with wheel, to test the wear-resistance of the wheel. Can be measured wheel wear resistance and the overall structure of the material whether wear or deformation, The test results are available for reference for improvement.


Applicable industries

Applied to all kinds of bag manufacturers. To improve products quality according to test results.



Quick Details

Place of Origin: Guangdong, China (Mainland)

Power: Electronic

Usage: Wheel Testing Instrument, luggage tester

Volume: 620*450*650mm

Wheel diameter: 192 mm

Testing speed: 0-10km/hr adjustable

Support function:The machine will be automatically

Warranty:1 Year

Weight:150kg



Technical parameters

 Test wheel

  36#, 8 "
 Test speed  0-10km/hr
 Time set  999 seconds, 2 groups, 999 points 2 groups
 Number of times set  0~999999 automatic shutdown
 Wheel Core load  10,20,30,50kg
 Power supply  220v,50hz
 Registration 1  Set two: The time of rest for each walk
 Registration 2  Set Total stroke downtime

Lab Testing Equipment , 50 kg Wheel Core load Luggage Wheel Wear Testing Equipment 0
