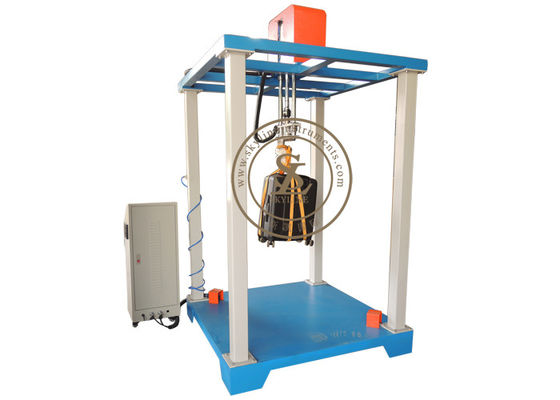

QB/T2922-2007 50LB Load Luggage Handle Jerking Tester
Application
Luggage Handle Jerk Tester is applicable to testing the resistance of oscillating impact of the handle, sew stitch lines and the whole structure of luggages. The testing methods are as follows: First, Load the object with stated load weight. And then do the test to the specimen with the speed of 30 times per minute and the impact height of 4 inches for 2500 times. The tset result can be taken into consideration of quality improvement.
This product is used for comprehensive testing of bags as the basis for quality improvement.
Principle

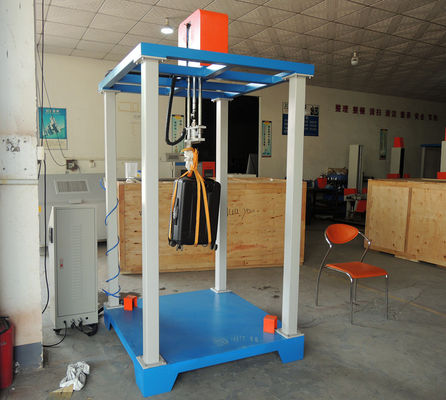

This machine according to the Test specification production: Test method is, the luggage handle hook on the oscillator hook, with rope fastened, then put a certain weight in the package load, set the control times and speed, and start testing to understand its structural performance.
Technical parameters
| Mode | SL-TL03 |
| Impact Height | 4 inch (0~6 inches) adjustable |
| Oscillation Mode | Spring type: 1.79Kg/mm |
| Testing Speed | 5~30 C.P.M. adjustable |
| Times Setting | 1~999999 Automatic shutdown |
| Additional Fucnction | It would stop automatically if something goes wrong. |
| Dimension | 1400×1200×2500 mm |
| Weight | 390 Kg |
| Power | 1, 220V/50Hz |
| Design criteria | QB/T2922-2007 |
Luggage Handle Jerking Tester.pdf
