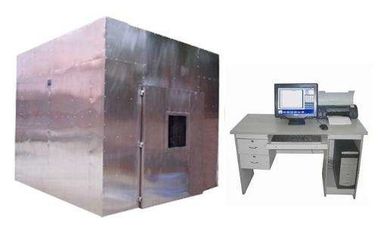

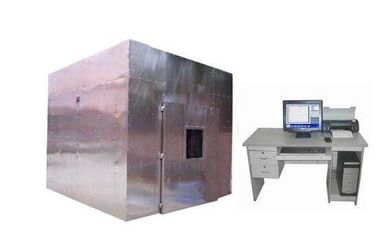

Name: SL-FL51 Wires & Cables Smoke Density Test Room
Brand: SKYLINE
SKU: SL-FL51
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (128 reviews)

Home Products Fire Testing Equipment

SL-FL51 Wires & Cables Smoke Density Test Room

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-FL51

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	20 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

Standards:	IEC61034-1997, GA306.1-2007 Etc	Burning Room Size:	W3000D3000H3000mm (27m3)
Material:	Stainless Steel	Measurement Range:	0-100%
Sensor:	Photocell, Load Resistance≤100Ω
High Light:	flammability test apparatus , flammability testing labs

IEC61034-1997 Photocell Sensor Wires & Cables Smoke Density Test Room

Application

Applies to check the size quantity of producing smoke of cables or optical fiber under prescriptive fire source.

Standards

According to IEC61034-1997, GA306.1-2007, GA306.2-2007.

Technical parameters

Burning room size	W3000D3000H3000mm (27m3), made of stainless steel
Standard fire source	1.00L±0.01L alcohol
Illuminant nominal power	100w, nominal voltage:DC12v±0.01V
Sensor	photocell, load resistance≤100Ω
Measurement range	0～100%
Alcohol dish	bottom: 210mm×110mm；top:240mm×140mm；height:80mm
Desktop fan	Rotating shaft is 200mm～300mm from found, 500mm±50mm from wall. Fan blades size of 300mm ± 60mm, wind speed:7～15 m3/min
Min size	100mm×100mm,height: 2150mm

What is smoke density?

This test measures the amount of smoke given off by a material that is burning or smoldering. The material is tested when it begins to smolder and again when a flame source is added. The smoke density is between 0 (no smoke generated) and 800. Most finishes and materials require a rating of 450 or less.

3 Metre Cube Smoke Density Test Apparatus.pdf
