QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester

QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester

QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester
QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester
QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-TL04
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 20 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: SL-TL04 Luggage Tumble Tester Adjustable Angle: ±180 0
Load: Max 50 Lb Bench Load: 3860 Kg
Bench Size: 2400mm X 2100 Mm × 2350mm Time Frequency: 0 – 10 Times / Min
Highlight:

abrasion testing equipment

,

brake testing equipment

SL-TL04 Luggage Tumble Tester



Introduction

Usage:

When the product is moved or transported, it may fall down causing damage to the internal product. Before the damage is prevented, the machine can be used to anticipate testing so as to find the best solution so as to minimize the amount of the product loss during transportation.



The Features:

Professional suitcase roller Measuring Machine applies to damage test of luggage and package by simulating the transport process,such as dropping,impacting,rolling;in order to inspect the protecting ability toward the luggage and its inner things.And the result can be the reference of improvement.



The parameters: SL-TL04 Luggage Tumble Tester



 Mode  SL-TL04
 Roller diameter and depth  72 inch
 Depth  48 inch
 Roller speed  1.62 r.m.p
 Obstacles specification  60degrees obstacles 3 groups
 Sample size  1000×700×400mm
 Counter  LCD display, 0-99999999 can be set
 Machine size  2400×2100×2350mm
 Weight  3860kg
 Power  AC380V
Design criteria  QB/T2902-2007

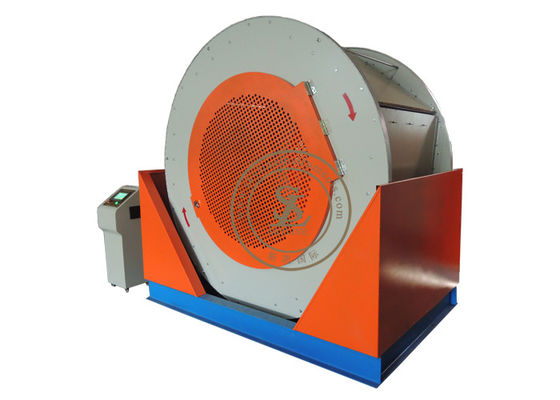

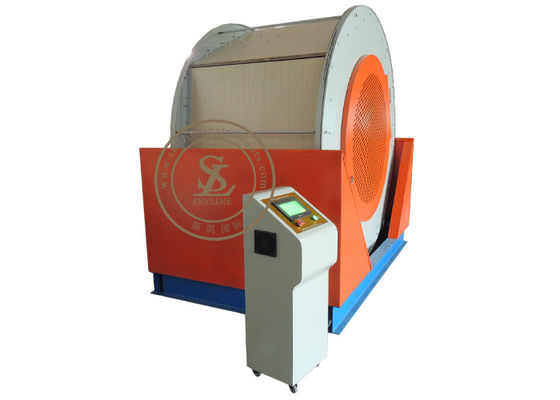

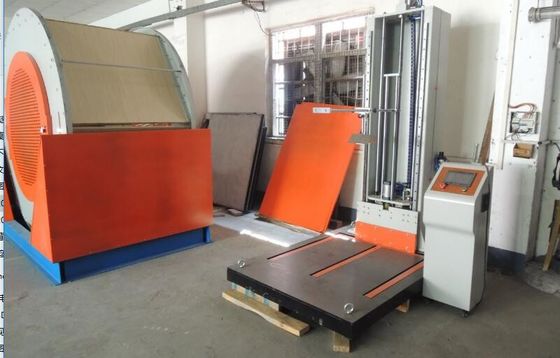

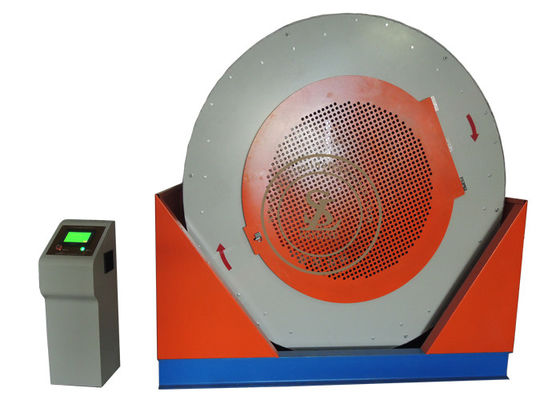

The picture of the machine: SL-TL04 Luggage Tumble Tester



QB/T2902-2007 Luggage Tumble Tester /Suitcase Luggage Leather Case Drump Roller Drop Tester 0
