Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester

Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester

  • Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester
  • Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester
  • Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester

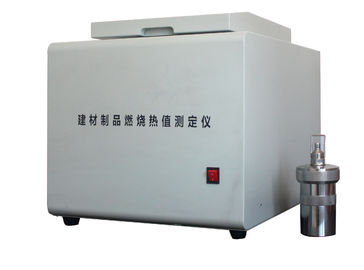

Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL087
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case,
Delivery Time: 20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Flammability Tester Standards: ISO1716, EN ISO 1716
Application: Determine The Heat Of Combustion Of Building Products Bomb Vessel Capacity: (300 ± 50) ML
Control Method:: PC Control, Fully Automatic Power Supply: AC220V+/-10%, 50HZ
Heat Capacity Of The Instrument: About 10000J / K Temperature Detection: (4.5-50) ℃, 0.0001 ℃ Resolution
High Light:

horizontal flammability tester

,

vertical flammability chamber

Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester



Application

It is for building materials combustion calorific value test. The test method specified in this standard is used to test the absolute heating value of the combustion of the test article regardless of the morphology of the article



Standards

ISO1716, EN ISO 1716



Specification

 Bomb Capacity

 (300 ± 50) mL

 Oxygen bomb pressure range  0.5 ~ 3.5MPa, no leakage, bomb pressure 21Mpa
 Crucible  Φ25mm, height (14-19) mm, a wall thickness of 1mm. Stainless steel
 Stirring power  0.5KW
 Application environment  (10 ~ 35) ℃, humidity ≤80%
 Heat capacity  about 10000J / K
 Repeatability of heat capacity  ≤0.2%
 Temperature detection  (4.5-50) ℃, 0.0001 ℃ resolution
 Temperature sensor  PT100
 Inner cylinder  2000ml
 Oxygen bomb Sealing  oxygenation pressure 2.5 ~ 3.5MPa, no leakage
 Stirring power  3W, 375r / min
 Power supply  AC220V ± 10% 50Hz



Features

1.Automatic control of the outer cylinder water temperature at the set point temperature, to ensure that changes in real temperature does not affect the cooling correction, the measurement results more accurate
2.Automatically adjust the temperature inside and outside the cylinder, the use of a unique cooling correction system, water circulation system and software error correction system to reduce the cooling correction, the measurement results more accurate
3 Meet the international standard "end of the barrel than the outer cylinder about 1K"
4 computer calorific value calorimeter, to maintain the full functionality of the microcomputer system can run common software for other transactions, and start calorimeter measurement system can automatically calibrate the calorimeter energy equivalent (heat capacity), measure the calorific value
5. Computerized combustion calorimeter The inner cylinder of the device adopts the electric stirring of the paddle blade, and the mixing of the outer cylinder adopts the submersible electric stirring to make the stirring more even and convenient. The instrument uses a blown cotton ignition method.
6 microcomputer calorific value tester operating in WinsowsXP and above operating system, the whole process of Chinese characters prompts, human-computer interaction, that is, learning to use, follow the prompts to complete the test.

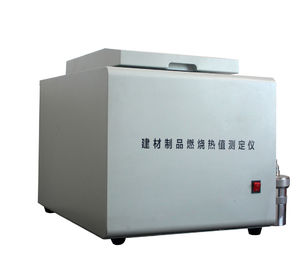

Oxygen Bomb Calorimeter / Buliding Materials Burning Calorific Value Tester 0

What is bomb in bomb calorimeter?

The bomb calorimeter is used to determine the calorific values of solid and liquid fuels. It consists of a strong steel shell known as a bomb. It consists of a base which supports the platinum crucible and is screwed to the body of the bomb.
