ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant

ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant

  • ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant
  • ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant
ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-S32
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Yo Yo Ball Tester Standards: ASTM F 963-16
Test Speed: 80R/min Stroke: 0-1000MM(adjustable)
Material: Stainless Steel,polyamides Dimension: 1100x350x1300mm
High Light:

stability test chamber

,

swing durability tester

ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant



Product Description

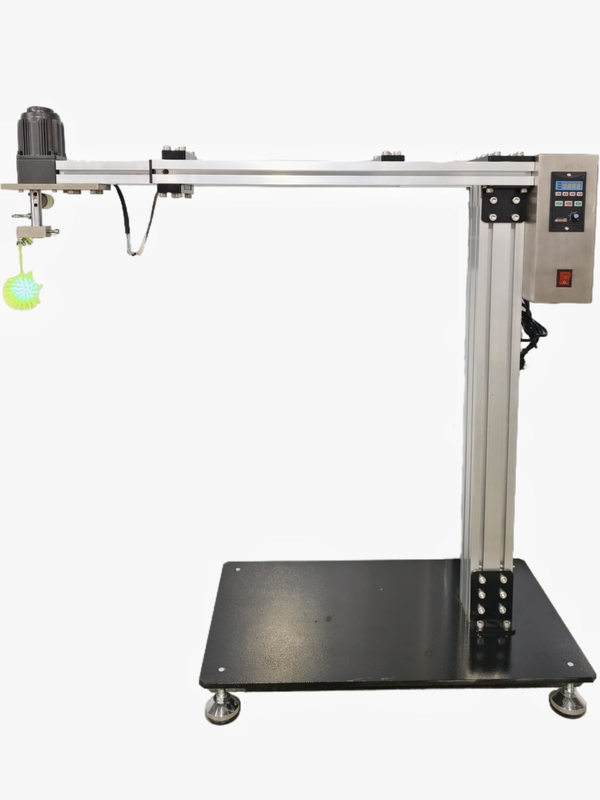

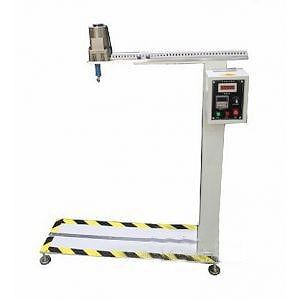

The yo-yo ball rope extension test instrument makes the length measuring system( to calculate the elongation length) and the yo-yo ball installed in the same spindle for rotating.When the yo-yo ball rotates at the speed 80r/min, the line of the ball will stretch along the centrifugal direction, and the test line(one end fixed in the ball, the other end fixed on the trolling reel) is connected with the encoder, the trolling reel and the spindle of the encoder are free state, and the bearing friction can be ignored.



Techinal parameters

 Test speed  80R/min
 Scale  2 group
 Dimension(W×D×H)  1100×350×1300mm
 Rotating speed  1-150(adjustable)
 Stroke  0-1000MM(adjustable)
 Weight(kg)  55kg
 Power Supply  1∮ AC 220V
 Standard  ASTM F963



ASTM YoYo Ball Tester.pdf



ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant 0

ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant 1ASTM F 963-16 YO YO Ball Tester For Initial Length And Elastic Constant 2
