Name: BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S18-B
Price: 4,500.00 USD
Availability: InStock

Home Products Flammability Testing Equipment

BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	Calibration Certificate
Model Number:	SL-S18-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	15 working days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	2 pcs/ month

Contact Now

Detailed Product Description

SKYLINE:	BS 5438 Flammability Testing Equipment	U Shape Fixture Frame:	160mmx250mm
Marker Threads:	45 Tex To 50 Tex	Rectangular Fixture Frame:	160mmx700mm
Dimension:	76x52x110cm	Weight:	55kgs
Highlight:	flammability test chamber , flammability test apparatus

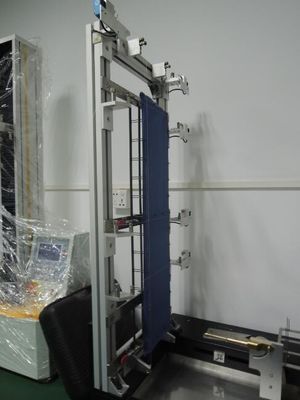

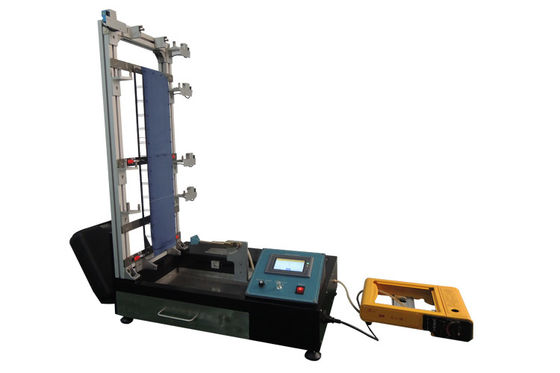

BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear

Applications

This tester is used to test the flammability performance of fabric, multi-layer fabric,fabric assemblies used in dress gowns and sleepear.

Performance requirements

Three specimens shall be tested in the machine direction and three in the cross direction in
accordance with test 3 of BS 5438 using a 10 s flame application time, except that the vertical trip threads shall not be used. None of the six specimens shall sever the 300 mm trip thread in less than 25 s.
None of the six specimens shall sever the 600 mm trip thread in less than 50 s.
If any one of the six specimens tested fails to comply with either performance requirement, then a further six specimens shall be tested
None of the second group of specimens shall fail either of the performance requirements.

Specification

Item	Specification
Ignition time setting range	0~99.99s
Combustion timing range	0~999.9s

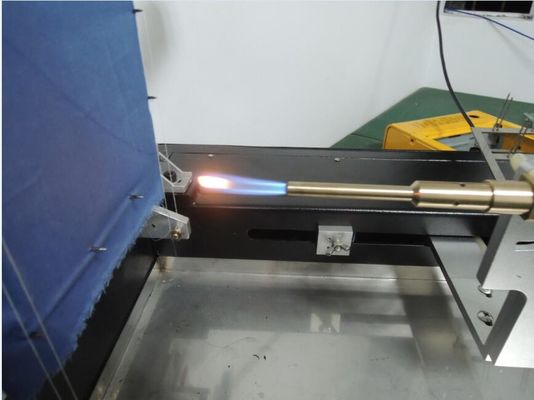

Burner	complies with BS 5438
Burner angle	can be moved (horizontal and veritical)
Test Flame Height	can be adjutable
U Shape Fixture Frame	160mmx250mm
U-shaped clamp marking line position	The first marking line is from the mouth of the fire mouth 167mm, the second mark line distance from the first mark line distance of 150mm, the third mark line distance from the second mark line distance of 300mm

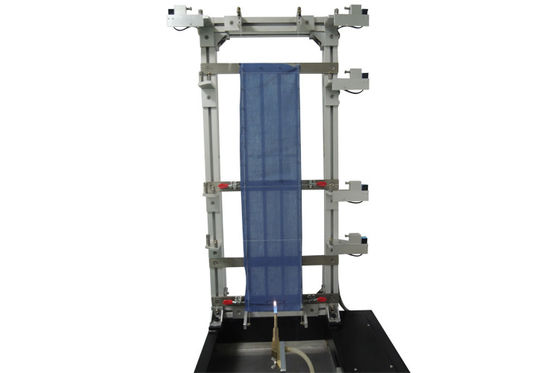

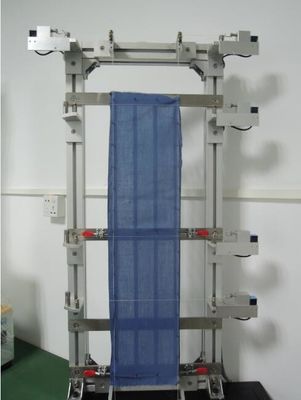

Rectangular fixture frame	160mmx700mm
Combustion gas	Butane Gas
Dimension (WxDxH)	76x52x110cm
Weight	≈55Kg
Power supply	1∮ AC 220V 50Hz

BS 5438 Vertical Flammability Testing Equipment For Fabrics/ Multi-layer Fabric,Sleepwear 0
