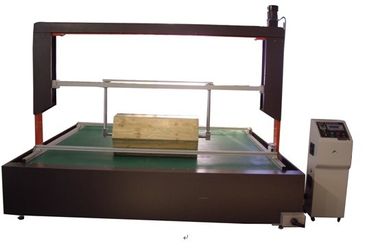

Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-T07

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	plywood case
Delivery Time:	30 working days
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	1 pcs/ month

Contact Now

Detailed Product Description

SKYLINE:	Mattress Durability Testing Machine	Rollator Size:	Rollator Size (WxDxH): 267cmx300cmx195cm
Weight:	2000KG	Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG	Cylinder Weight:	140 KG.
Highlight:	mattress testing equipment , spring testing equipment

Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine

Name: Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T07
Price: 4,500.00 USD
Availability: InStock

Application of Mattress testing Machine

The Mattress Rollator measures the durability of mattresses by simulating long-term use conditions, to determine the durability of any type of mattress and boxspring unit, regardless of the materials of construction.

Standard of Mattress testing Machine

ASTM F 1566 BSEN 1957

Key Specification of Mattress testing Machine

Testing schedule

ASTM 1566: Max. mattresses width;

Min. 70% of mattresses width or 38in (965mm) choose a smaller value between them;

Hexagonal roller	240 ± 10Lb (109 ± 4.5kg), length 36 ± 3in (915 ± 75mm)
Six-cylinder edge distance	17 ± 1in (430 ± 25mm)
Test speed	ASTM 1566: no more than 20 cycles / min
Measured disc	ASTM 1566: diameter 13.54 ± 0.2in (344 ± 5mm)
Mattress rollator size (WxDxH)	267cmx300cmx195cm
Weight (approx.)	about 2000kg
Power supply	three-phase four-wire AC 380V 6A

Main Features of Mattress testing Machine

Imposed the pressure on mattress by a transducer, pressure range to 300KG
Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
Pusher travel speed adjustable, about 160 weeks times per minute
Suitable maximum specimen	2.2M ×2.2M
Display Accuracy	0.001kgf
Deformation precision	0.001mm
Impact height	0-300mm adjustable
Counter range	0-99999 times
Machine size	( L×W×H) about 3000×2800×2500mm
Weight	about 650Kg

Rollator Mattress Testing Equipment BSEN 1957 , Mattress Durability Testing Machine 0
