Electrical Temperature Measurement Black Test Corner For Electronic Products

Electrical Temperature Measurement Black Test Corner For Electronic Products

  • Electrical Temperature Measurement Black Test Corner For Electronic Products
  • Electrical Temperature Measurement Black Test Corner For Electronic Products
Electrical Temperature Measurement Black Test Corner For Electronic Products
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-SE05
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Black Test Corner Test Temperature Point Disposal: 100mm X 100mm
Dimension: 600X600X600mm Thermocouple: <0.3mm Import K Type
Standards: IEC 600335 IEC 60335-1 / Clause 11 Warming Black Test Corner
High Light:

sharp edge tester

,

electronic testing machine

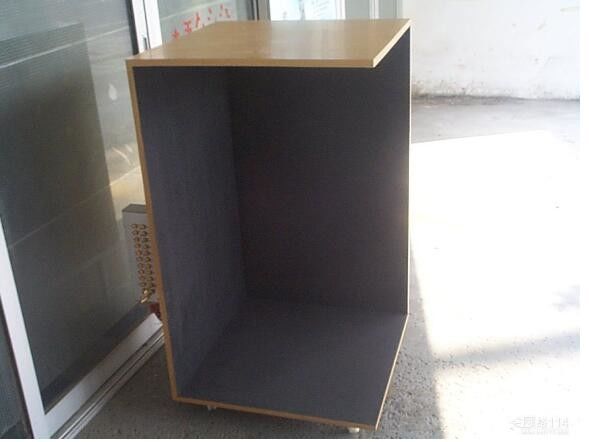

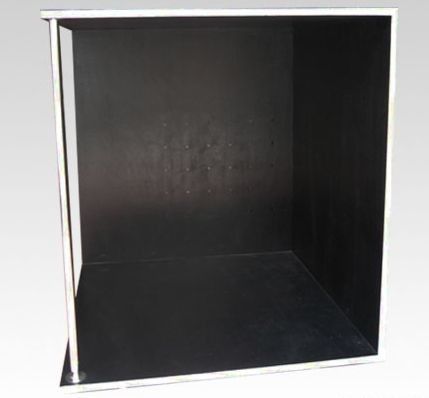

Electrical Temperature Measurement Black Test Corner For Electronic Products



Applications

It is used for the measurement of the temperature radiated by different equipment during the tests from heating.



Standards

Test corner / room conform to IEC60335-1:2004 can be used to the temperature

test of all kinds of electronic products supply, in conformity with the standards requirement of the environmental conditions.



The Black Test Corner is used for the measurement of the temperature radiated by different equipment during the tests from heating and abnormal operation.



One is designed and made with the intention of determining the fulfillment of different norms as far as the registry from temperatures during the operation of the apparatus under test.



 Dimension  600X600X600mm  800x800x1000mm 1000x1000x1000mm
 Thermocouple  <0.3mm Import K type
 Thermocouple disposal  Disposal in a line bank( select and fit out thermocouple plug and socket)
 Test temperature sheet copper  Diameter15mm, thickness1mm sheet brass
 Test Temperature point  20point, 32point, 48point(other);
 Test Temperature point disposal  100mm X 100mm
 Glued board  Thickness about 20mm, Berlin black in face,Stick the gray sheet glued board in rear
 Active part  Install 4 pcs active wheels
 Provide  Personalized service







Electrical Temperature Measurement Black Test Corner For Electronic Products 0
