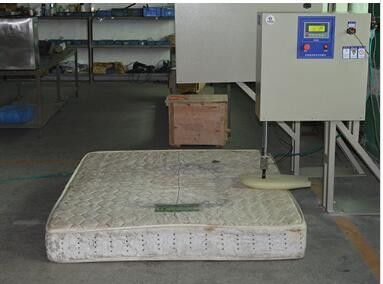

Professional Mattress Testing Machine BS EN 1957 Edge Durability Tester

Professional Mattress Testing Machine BS EN 1957 Edge Durability Tester

  • Professional Mattress Testing Machine BS EN 1957 Edge Durability Tester
Professional Mattress Testing Machine BS EN 1957 Edge Durability Tester
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: Calibration certificate
Model Number: SL-T06
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 35 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 unit
Contact Now
Detailed Product Description
SKYLINE: Mattress Edge Durability Testing Machine Load Pad Size: 380 * 495 * 75mm
Loading Force On The Back: 400 Newton Vertical Downward Loading Force: 1000N
Loading Time: (3 ± 1) S Dimension: 3000 * 2300 * 1200mm (L * W * H)
High Light:

mattress testing equipment


spring testing equipment

BS EN 1957 Mattress Testing Machine Mattress Edge Durability Tester


Product information of Mattress Testing Machine

It is mainly used to test the mattress edge durability, to meet all types of mattress manufacturers and standards. Used to determine the quality of mattresses and service life, strict compliance with International standards for mechanical testing requirements. Applicable to strong spring mattresses, ordinary spring mattresses, foam mattresses, brown fiber elastic mattresses and so on. In the edge of the durability to achieve automatic test surface height, to avoid the error of artificial measurement, saving the work of the time.


Parameters of Mattress Testing Machine

 Load pad size  380 * 495 * 75mm, its surface is hard and smooth, it is connected with the test equipment, can rotate around the horizontal axis on the vertical
 Vertical downward loading force  1000N
 Total number of tests  5000 times
 Loading time  (3 ± 1) s
 Control mode  PLC control, automatically record the number of tests
 Display  LCD display
 Number of tests  0-99,999 set their own, automatically keep the test results
 Test table material  stainless steel
 Height measuring pad  measuring the surface is smooth and smooth rigid cylinder, diameter 100mm, chamfer R10
 Height measurement system  through the software set the value of force, the way the vertical force down force, directly linked with the computer
 Dimension  about 3000 * 2300 * 1200mm (L * W * H)
 Weight  about 1T


Features of Mattress Testing Machine

  • The device meets two test methods: edge durability test, test surface height test.
  • With PLC control, to achieve automatic test results, a key to control the automatic operation and manual two test modes.
  • The edge durability test part of the cantilever mechanical structure, the use of pneumatic loading transmission parts to improve the mechanical strength and stiffness of the machine to increase the service life and test data accuracy, effectively reducing the operating noise.
  • The appearance of beautiful: all hidden wiring, to prevent the operation of the leakage process and the risk of any power system; bearing surface with stainless steel plate, the surface smooth, easy to load mattress; full steel base, no need to punch fixed ground, To ensure that the instrument does not move when the operation, not jitter.
  • Humanized control system, the interface is simple, functional, easy to operate.
  • Data protection: power off automatically save (data can be automatically saved after power).
  • LCD display, powerful and intelligent.
  • CNC machining from the standard fixture, the appearance of more able to reflect the human mechanical properties.
  • With the pneumatic lifting device, the rise is more stable.
