| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-E10 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | neogitable |
| Packaging Details: | plywood case |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit / month |
| SKYLINE: | Tracking Index Tester | Standards: | IEC60695 / IEC60112 |
|---|---|---|---|
| Test Current: | Current Limiting 1A±0.1A Adjustable, | Test Voltage: | 100~600V Adjustable, Displayed Value: R.m.s |
| Chamber Volum: | >0.5m³, Black Interior | Power Supply: | 800VA ,220V, 48-60Hz |
| High Light: | flammability test chamber,flammability test apparatus |
||

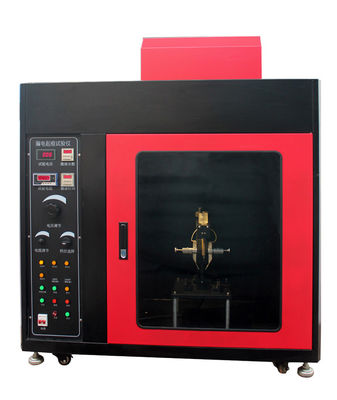

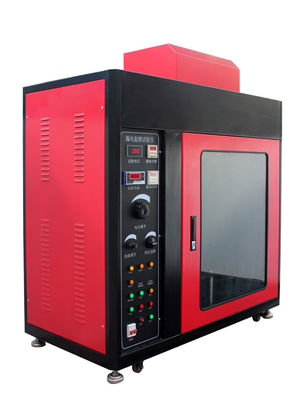

IEC60695 Tracking Index Tester for Led luminaires Testing and Electronic Products
Product information
Tracking Index Tester is based on IEC60695, GB4207 / IEC60112 and other standards designed and manufactured special detection equipment. It is suitable for the determination of solid insulation material under the wet condition compared with the tracking index and the tracking index of the tracking resistance. It is simple, accurate, reliable and practical.
Technical Parameters
| Electrode Materials | The electrode caput of brass-platinum |
| Electrode Distance | 4.0mm±0.1mm,60±5°angle |
| Test Voltage | 100~600V adjustable, displayed value: r.m.s |
|
Test Current
|
Current limiting 1A±0.1A adjustable, |
| displayed value:r.m.s, tolerance of 1.5% | |
|
Electrode Dimensions
|
width: 5mm±0.1mm, |
| thickness: 2mm±0.1mm, | |
| length >12mm, | |
| end chisel-edge angle : 30°±2°,platinum. | |
| Electrode Pressure | 1.00N±0.05N |
| Dripping Nozzle | outer diameter: 0.9mm~1.2mm for solution A |
| 0.9mm~3.45mm for solution B | |
| Dripping Interval |
0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable) drops to fall on the specimen shall be (30±2)min. |
| Heigh Drops | 30-40mm±5mm(adjustable) |
| Control | Using single chip microcomputer + touch screen control |
| Chamber volume | >0.5m³, black interior |
| Outer Dimensions | W*D*H=1100mm*700mm*1300mm |
| Power Supply | 800VA ,220V, 48-60Hz |
