ASTM F609 Footwear Testing Equipment Shoes Slip Resistance Friction Testing Machine

ASTM F609 Footwear Testing Equipment Shoes Slip Resistance Friction Testing Machine

  • ASTM F609 Footwear Testing Equipment Shoes Slip Resistance Friction Testing Machine
  • ASTM F609 Footwear Testing Equipment Shoes Slip Resistance Friction Testing Machine
ASTM F609 Footwear Testing Equipment Shoes Slip Resistance Friction Testing Machine
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-LC71
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: James Slip Resistance Property Tester Capacity: 25kg
Absolution: 1/1000 Load Accuracy: ±1%
Stroke: 300mm Standards: ASTM F609， HG/T3780-2005，ASTMD 1894 – 001
Highlight:

rub resistance tester

,

shoe wear tester

Slip Resistance Tester

Product description

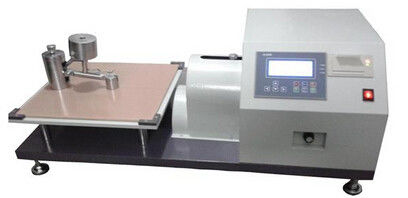

This machine is used to determine the dry static coefficient of shoe sole and the heel materials. Under the specified load an
a controlled walking surface, calculate its tangent and perpendicular forces to get the static coefficient of the friction.

Specifications
 Capacity  25KG
 Unit  kg, N
 Absolution  1/1000
 Load Accuracy  ±1%
 Stroke  300mm
 Test Speed  3.5±0.5in/min (100±10mm/min or 400±40mm/min)
 Grips  2700±34 g
 Dimension  (W*D*H)  84cm×27.2cm×33.6cm (approximate )
 Weight  86KG(approximate )
 Power  AC 220V 3A(specified)

Standards
ASTM F609, HG/T3780-2005,ASTMD 1894 – 001
