Name: Safety Footwear Testing Equipment Finished Shoes Flex Tester Machines With LCD Display
Brand: SKYLINE
SKU: SL-L05-4
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (131 reviews)

Home Products Footwear Testing Equipment

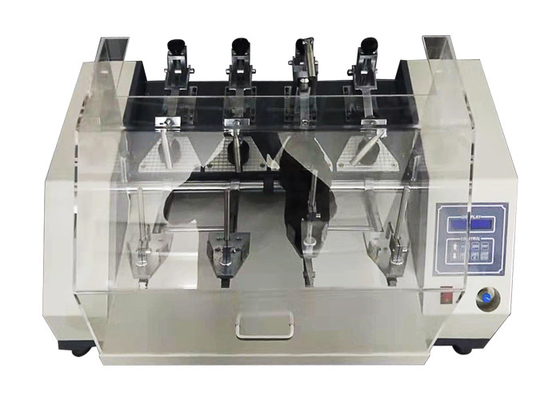

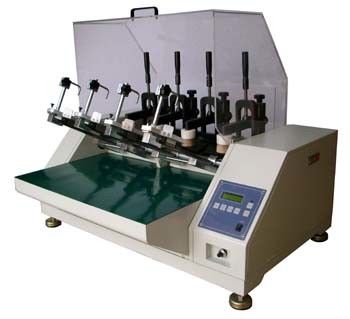

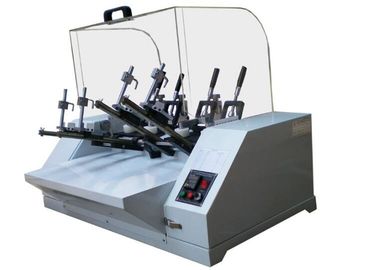

Safety Footwear Testing Equipment Finished Shoes Flex Tester Machines With LCD Display

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-L05-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	15 work days
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

SKYLINE:	Finished Shoes Flexing Tester	Standard:	SATRA TM92-1992
Dimension:	95 X 77 X 80cm	Test Sample:	4 Samples Simultaneously
Weight:	240KG	Bending Angle:	0~90
High Light:	rub resistance tester , shoe wear tester

Footwear Testing Equipment LCD Whole Shoes Flexting Tester

This tester is suit for all kinds of finished shoes.

Principle
The test sample installed in the test machine to a certain angle and frequency to promote the rear of the shoe bending, simulation of human footwear walking state of the test, the determination of shoes fatigue resistance and service life.

Parameters

Bending angle	0~90 ( adjustable)
Counter	LCD display,0-99,999,99 (8 digits)
Test Sample	Test 4 samples simultaneously
Dimension( L x W x H )	95 x 77 x 80cm
Weight	240kg
Standard	SATRA TM 92

Shoes Flexing Resistance Teste.pdf

What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
