Name: Permanent Compression Test Equipment / Deformation Tester For Rubber Static Test
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-LC68
Price: 4,500.00 USD
Availability: InStock

Home Products Footwear Testing Equipment

Permanent Compression Test Equipment / Deformation Tester For Rubber Static Test

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-LC68

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	Carton box
Delivery Time:	5 work days
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

SKYLINE:	Deformation Tester	Volume:	20 × 12 × 10cm
Weight:	11KG	Foam Plastic:	50 × 50 × 25mm
Test Pieces:	Rubber φ28.68, 12.7mm	Standards:	CNS-3560,10487, JIS-K6301, ASTM-D395, GB-7759
Highlight:	abrasion resistance tester , rub resistance tester

Permanent Compression Test Equipment / Deformation Tester For Rubber Static Test

Product introduction

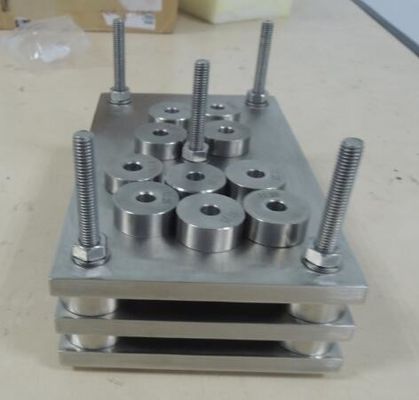

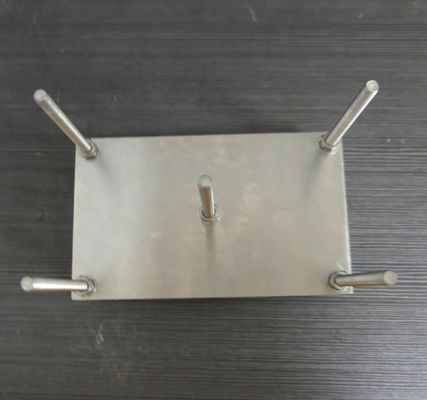

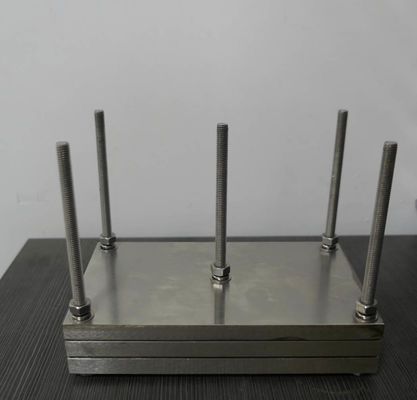

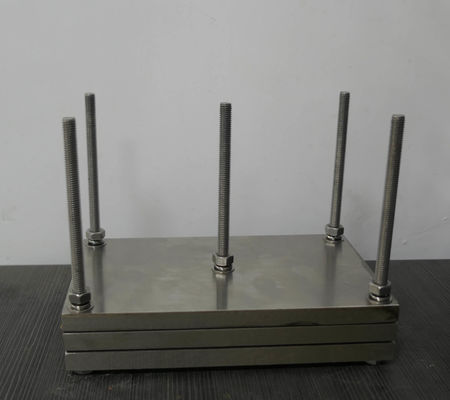

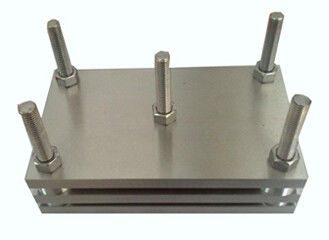

Permanent Compression Tester is for Rubber Static Compression Test

Permanent compression of the degree of distortion tester to take the standard test pieces, sandwiched between the flat panel, the screw rotation, compression to a certain rate, and then into a certain temperature of the oven (optional), after the specified time to remove, remove Test pieces, cooling for 30 minutes, measuring the thickness, into the formula for compression distortion.

Clamp specimens between metal plates by tighten nuts to apply a certain pressure for a required period,

place the device with specimen in a oven with required temperature for a required period, specimens were taken out and cooled for 30 minutes,

the final thickness is measured for calculating the recovery performance of specimen.

Specification

Test pieces	rubber φ28.68, 12.7mm (D) foam plastic 50 × 50 × 25mm
Volume	20 × 12 × 10cm
Weight	11kg

Standards

CNS-3560,10487, JIS-K6301, ASTM-D395, GB-7759
