Home Products Environmental Test Chamber

Constant Environmental Test Chamber Yellow Resistant Aging Test Chamber

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-EY01

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negoitable
Packaging Details:	Plywood case
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10 pcs/ month

Contact Now

Detailed Product Description

SKYLINE:	Yellowing Aging Test Chamber	Temperature Range:	+5 ℃ ~ 100 ℃
Rated Power:	300W	Wavelength:	365 ~ 400nm
Power Supply: 380V ±10%:	220V	Lamp Type:	E27 Thread Lamp
Highlight:	uv accelerated weathering tester , environmental testing machine

Enviromental Test Chamber Yellow Resistant Aging Test Chamber

Name: Constant Environmental Test Chamber Yellow Resistant Aging Test Chamber
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-EY01
Price: 4,500.00 USD
Availability: InStock

Simulation of the sun's ultraviolet radiation, test pieces in the machine by ultraviolet radiation after a period of time, observe the test piece against yellowing or change the degree of fade for the production of materials, the deployment of chemical raw materials for reference. This product can also be used for electronic industry EPROM elimination function.
Suitable for industry: leather, plastic, handicrafts, outdoor lights, toys, shoes, corrugated paper, rubber, glue, paint and so on. Resistance to yellowing test machine in line with ASTM-D1148 standard.

Bulb

OSRAM resistant yellowing test bulb 300W UV lamp OSRAM UV copy light / curing lamp

Product Name	UV UV light bulb
Brand	OSRAM OSRAM
Origin	Germany
Rated power	300W
Rated voltage	220V
Wavelength	365 ~ 400nm

Life: 1000 hours
Curing time: 15 ~ 30 seconds

The main parameters of Enviromental Test Chamber

Inner box size	500 × 600 × 750 cm (W × D × H)
Carton size	820 × 750 × 1050 cm (W × D × H)
Temperature range	room temperature +5 ℃ ~ 100 ℃
Control mode	P.I.D. Automatic temperature calculation
Temperature analysis	0.1 ℃ unit display
Control accuracy	± 1 ℃ (oven, aging)
Distribution accuracy	± 1% (1 ℃) at-room80 ℃
Timer	0 ~ 999.9 hours (minutes) electronic display, power failure memory, buzzer
Set dish	turntable
Light source	bulb type, a 300W resistance to yellowing bulb
Heating method	hot air circulation
Security	independent EGO over-temperature power, safety overload switch
Manufacture of materials	high-quality galvanized sheet
Machine weight	60kg
Power	1PH, AC220V, 10A
Test distance	150-250mm
Air cycle	electric fan air circulation device group
Protection device	fuse overload protection

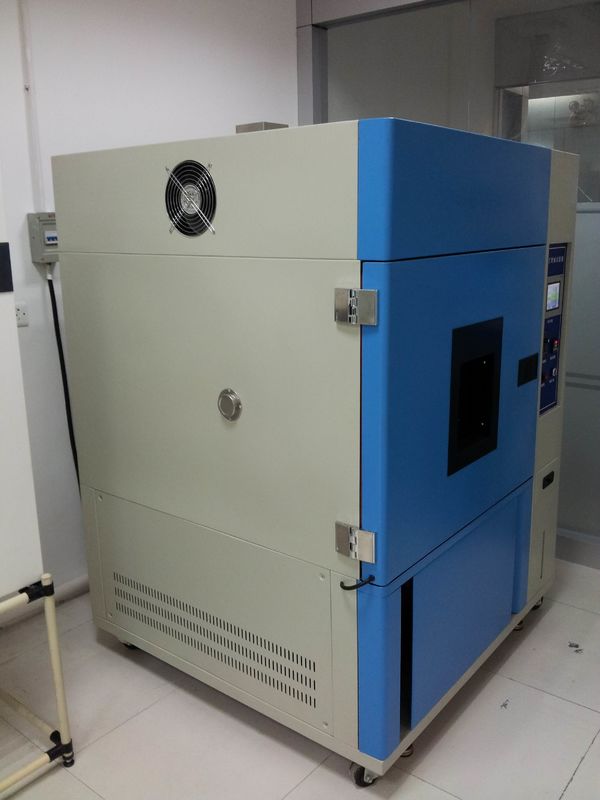

Constant Environmental Test Chamber Yellow Resistant Aging Test Chamber 0

Internal picture
