Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE, calibration certificate |
| Model Number: | SL-E06 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negoitable |
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 10 pcs/ month |

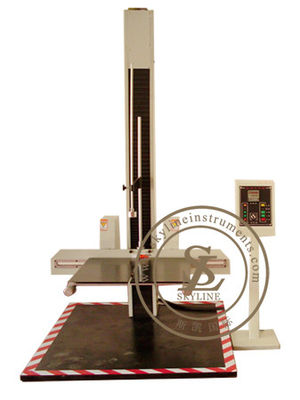

| SKYLINE: | Dual Arm Drop Test Equipment | Drop Height: | 400-1500 |
|---|---|---|---|
| Max Weight For Test Sample: | 60kg | Max Dimension For Test Sample（mm）：1400×1000×800: | 1400×1000×800 |
| Net Weight: | 500kg | Dimemsion: | 1400×1200×2200 |
| High Light: | environmental testing equipment,environmental testing machine |
||
| Drop Height(mm) | 400-1500 |
| Max weight for test sample(kg) | 60 |
| Max dimension for test sample(mm) | 1400×1000×800 |
| Dimension for impact panel(mm) | 1400×1200 |
| Dimension for hold arm mm) | 700 X 350 |
| Horse power | raise a third P, manual adjustable wide |
| Dimension for test machine (mm) | 1400×1200×2200 |
| Net weight(kg) | 500 |
| Standard | ISO22488-1972(E) |
A. What does a drop tester do?
Drop testing determines the ability of a package to withstand the impacts prevalent in the distribution environment. This process is vital for ensuring that products travel to customers safely and securely, eventually arriving damage free.
B. How do you check a drop test?
The testing drop heights depends on the total weight of the product and package. The test is conducted by dropping the carton 10 times in total. It is conducted first on the corner or at any point that is expected to be the weakest to cause damage. The carton is dropped from the appropriate height and angle.
C. What is the standard for drop test?
U.S. Military Standard, MIL-STD-810G 516.6, defines a process by which devices are dropped 26 times, on all faces (sides), corners, and edges. Distributed over 5 test units, the unit test includes 8 corner drops, 12 edge drops, and 6 face drops. Units are dropped at test method-defined temperatures.
