Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | Calibration certificate |
| Model Number: | SL-S18 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | plywood case |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10 pcs/ month |
| Standard: | EN71-2 | Controller: | PLC+ Touch Screen |
|---|---|---|---|
| Burner: | Complies With ISO6941, EN71-1 | Application: | Stuffed Toys, Plush Toys |
| Dimension: | 105 X 60 X 94 Cm (LxWxH) | Weight: | 40 Kg |
| High Light: | horizontal flammability tester,flammability test chamber |
||

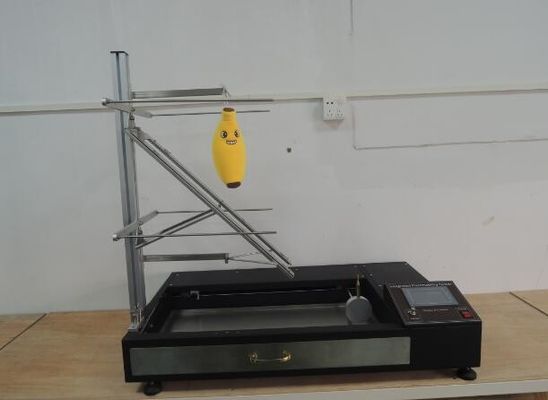

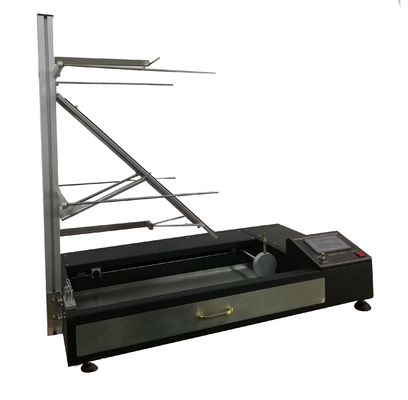

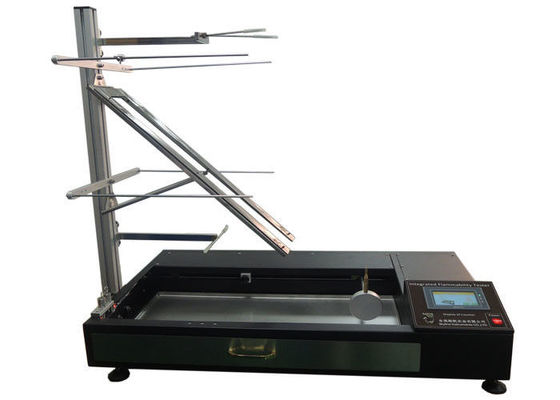

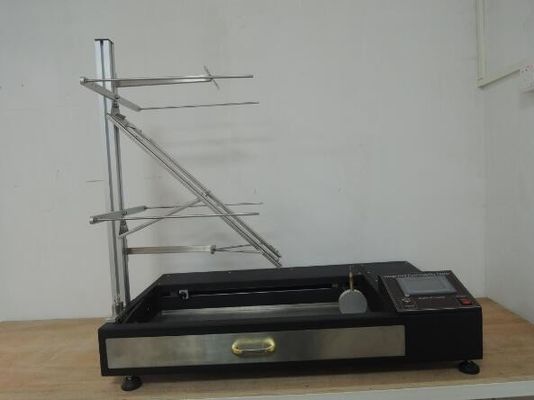

EN71-2 Comprehensive Flammability Tester for Testing Plush Toys
Application
En71 Toy Integrated Flammability Tester, to determine flammability resistance of finery or toy and children clothing, the toy flammability tester mainly for evaluating the burning speed and time of the following kinds of toys or children stuff.
Toys to be worn on the head, such as beards, wig and mask etc.
Toy disguise costumes and toys intended to be worn by a child in play, such as cowboy suits, nurse's outfits and long flowing capes etc.
Toys intended to be entered by a child, such as toy tents, puppet theatres, wigwams and play tunnels.
Soft filled toys (animals and dolls, etc.) with a piled or textile surface.
Flame height gauge: 20 mm, 40 mm
Standards
EN71-2:2011+A1:2014, Appendix A,ISO8124
| Ignition of the Time Range | 0-99.9S Precision 0.1S |
| Continued burning time | 0-999.9S |
| Ignition Fire Mouth Dimension | According to ISO6941 Standard |
| Dimensions | 105 x 60 x 94 cm (LxWxH) |
| Weight | 40kg |
| Standards | EN71-2 ISO8124-2 |
| Accessories |
U-Type Fixture pack of 1 45 degree Clamp pack of 1 T-Type Fixture pack of 1 Thread Clamp pack of 2 U-Type Fork pack of 2 Cotton Thread pack of 1 Hammer pack of 2 Tag line guide ring pack of 4 Pinchcock pack of 4 Air feed device pack of 1 Burner pack of 1 |
EN 71 Toy Flammability Tester.pdf
Contact Person: Kate Guo
Tel: 13310805373
