Automotive Interior Flammability Test Chamber , Horizontal Flammability Tester FMVSS 302

Product Details:

Place of Origin:	china
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S33

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	10 work days
Payment Terms:	T/T, Western Union, Western Union
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

SKYLINE:	Flammability Test Equipment	Fire Nozzle Diameter:	9.5mm
Fire Height:	38mm+/-2	Distance From Nozzle To Sample:	19mm
Weight:	18 Kg	Dimensions:	460×200×400 Mm (LxWxH)
Power Supply:	220 /110 V 50/60 Hz 2 A	Sample Clamp:	360x100mm
Highlight:	horizontal flammability tester , flammability test apparatus

Automotive Interior Flammability Testing Equipment Horizontal Flammability Tester

Product Information

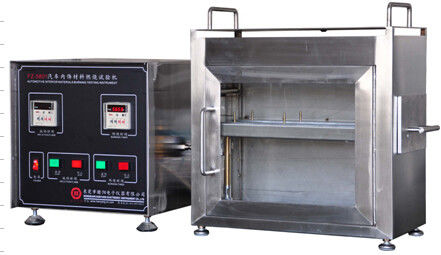

Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Horizontal flammability tester is safe and easy to operate, Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
Automatic gas and timing control system including solenoid control gas valve and automatic ignition timer and controls.

Technical parameters

Fire nozzle diameter	9.5mm
Fire height	38mm+/-2
Sample clamp	360x100mm
Interior Dimension	330x50mm
The sample below	25mm Pitch between metal wires is 25mm
Marked line	Starting point 38mm/End point 292mm from Igniting point
Distance from Nozzle to Sample	19mm
Power	220 /110 V 50/60 Hz 2 A
Weight	18 KgV
Dimension for the flammability chamber	381mm×203mm×356mm
Dimensions	460×200×400 mm (LxWxH)

Testing Standards
ISO 3795, FMVSS 302,DIN 75200,SAE J369, ASTM D5132,JIS D1201,BSAU 1690
