| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-F33 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 pcs/ month |
| SKYLINE: | Zipper Reciprocating Fatigue Tester | Speed: | 30/min |
|---|---|---|---|
| Force: | 0-10 Kg Lateral Force. 0-5 Kg Longitudinal Force | Angle: | Open: 30degree. Close: 60degree |
| Dimension: | 480 X 370 X600mm | Weight: | 65kgs |
| Standards: | BS3084 | ||
| Highlight: | abrasion resistance tester,rub resistance tester |
||

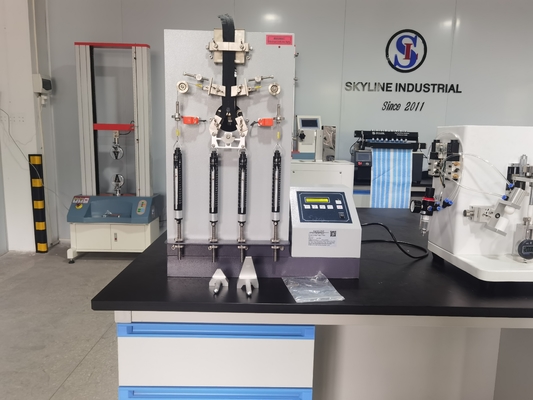

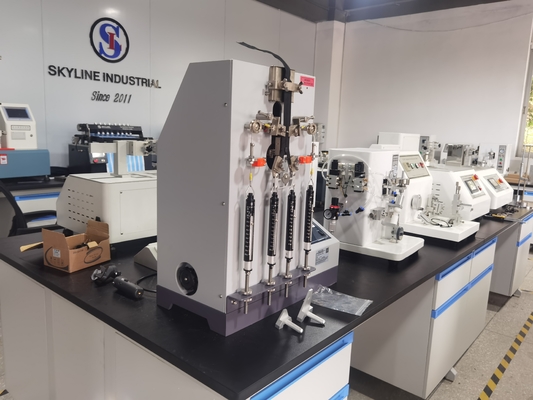

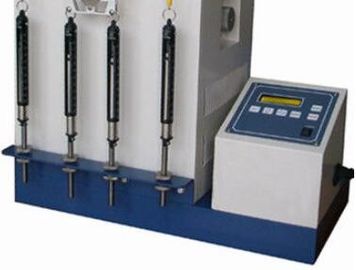

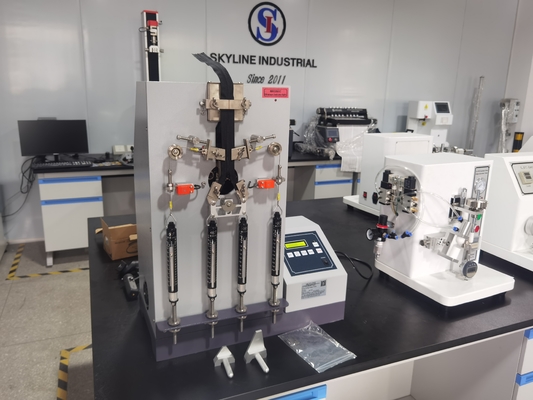

30 / min Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester Machine
Product introduction
Zipper Tester, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension.
Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute, integral counter to stop the drive when a pre-selected count has been reached
Specifications
| Horizontal fixture width | 25mm | ||
| Test speed | 30cpm | ||
| Reciprocating stroke | 75mm | ||
| Angle |
Open: 30degree. Close: 60degree |
||
| Counter | LCD, 0-999999 | ||
| Power Supply | AC 220V 50/60HZ | ||
| Dimensions | 480 x 370 x600mm | ||
| Weight | 65kg | ||
| Standard | CNS -1083 , BS 3084 , QB/T2171 | ||
| Standard accessories | 1pc | 60° Angle gauge | |
| 1pc | 30° Angle gauge | ||
| 8pcs | Positioning pieces | ||
| 1pc |
Power line |
||
Zipper Reciprocation Tester.pdf
