Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester

Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester

Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester
Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester
Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-F33
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
Standards: BS3084 Speed: 30/min
Force: 0-10 Kg Lateral Force. 0-5 Kg Longitudinal Force Angle: Open: 30degree. Close: 60degree
Dimension: 480 X 370 X600mm Weight: 65kg
Highlight:

rub resistance tester

,

shoe wear tester

Professional Footwear Testing Equipment BS3084 Zipper Reciprocating Fatigue Tester



Product introduction

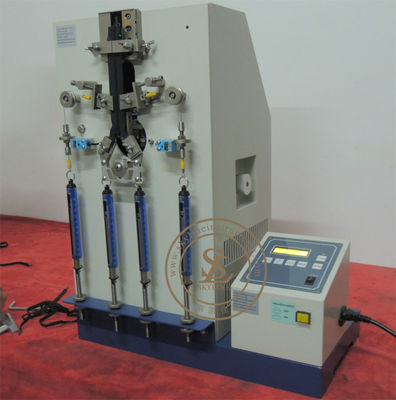

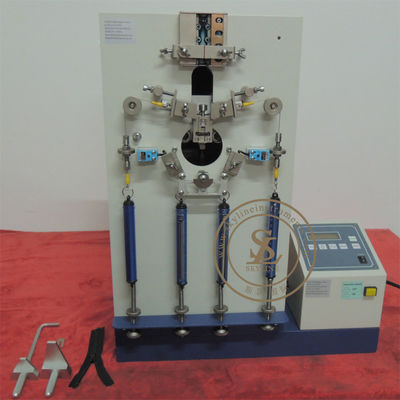

Zipper Tester, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension.
Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute, integral counter to stop the drive when a pre-selected count has been reached



Specifications

 Horizontal fixture width  25mm
 Test speed  30cpm
 Reciprocating stroke  75mm
 Angle

 Open: 30degree.

 Close: 60degree
 Counter  LCD, 0-999999
 Power Supply  AC 220V 50/60HZ
 Dimensions  480 x 370 x600mm
 Weight  65kg
 Standard  CNS -1083 , BS 3084 , QB/T2171
 Standard accessories  1pc  60° Angle gauge
 1pc  30° Angle gauge
 8pcs  Positioning pieces
 1pc

 Power line

Zipper Reciprocation Tester.pdf
