Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-L13 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 pcs/ month |
| SKYLINE: | Steel Hook Stiffness Tester | Length Of Measuring Clip: | 60±0.002mm |
|---|---|---|---|
| Front Clamp: | D 12mm | Load: | 200g*4sets |
| Dimension: | 45*45*20cm | Standards: | BS 5131/4.18, QB/T 1812, QB/T 1813 |
| Rotation Angle Of Lower Jaw Seat: | 30degree | ||
| High Light: | abrasion resistance tester,rub resistance tester |
||

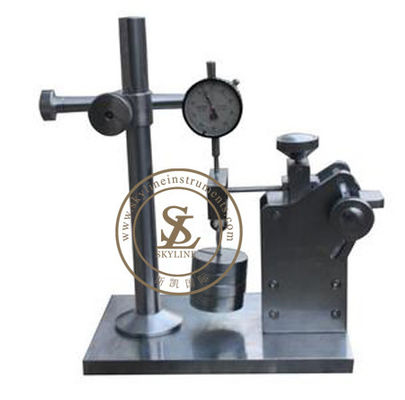

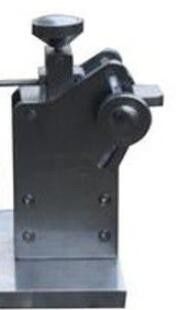

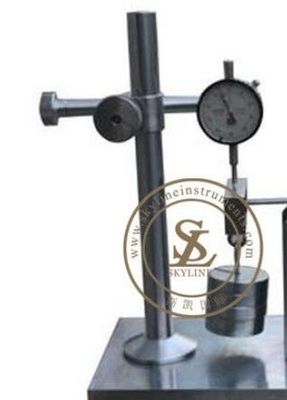

Footwear Tesitng Equipment Steel Hook Stiffness Tester
Use
The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the
reinforcement of the waist region of shoes. The shank is clamped at its heel end and bent as a cantilever beam by masses
added to its forward end. The amount of bending is measured and used to calculate the flexural rigidity of the shank.
Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of
steel shanks used for the reinforcement of the waist region of shoes, the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward ,then calculate the flexural rigidity of the shank.
Specification
| Rotation Angle of Lower Jaw Seat | 30degree |
| Length of Measuring Clip | 60±0.02mm |
| Depth of Clamp for Front End | 12mm |
| Dial Gauge | 0~10mm(min graduation0.01mm ) |
| Dead Weight | 200+/-1g×4 |
| Dimension(W×D×H) | 37x17x35cm |
| Weight | 12kg |
| Standards |
SATRA TM 58 BS 5131/4.18, QB/T 1812, QB/T 1813 |
SL-L13 Insole Backpart Stiffness Tester.pdf
