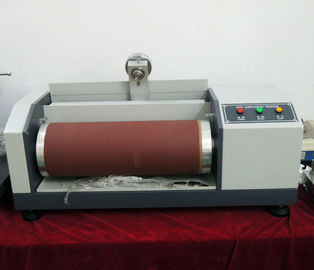

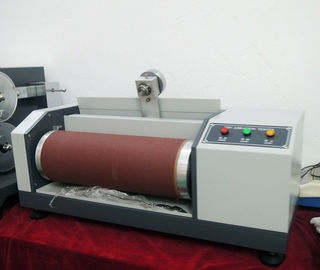

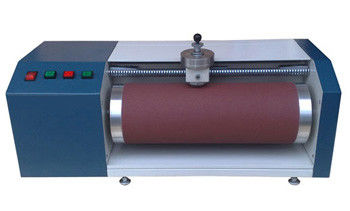

DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved

DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved

  • DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved
  • DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved
  • DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved
  • DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved
DIN-53516 Leather Testing Equipment Abrasion Resistance Tester For Shoes / Clothing CE Approved
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L03
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
Standards: DIN-53516 Specimen Load: 10N 0.2N
Scale: 0.1 ~ 10mm Diameter Abrasive Wheel: 150 450L (mm).
Emery Cloth: 60 #, 425 473 1.5 (mm). Set Rotation: 84 Rotate (about 40M).
High Light:

leather testing machine

,

rubber testing equipment

Leather Testing Equipment DIN-53516 Din Abrasive Tester

Use
Main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
Applicable industry
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; Commodity inspection, arbitration and technical supervision departments.
Technical parameters

 Specimen Size 16mm, thickness at least 6mm
 Specimen Load 10N 0.2N
 Diameter of wear wheel 150mm
 Speed of wear wheel 40 1RPM
 Emery cloth Specification 60 #, seam is less than 2mm
 Testing Length 40M (about 84 rotate)
 Horizontal displacement 4.2mm / rotate


Machine Specifications

 Test-arm weight 250 5 (g)
 Testing Load 2.5N, 7.5N
 Diameter abrasive wheel 150 450L (mm)
 Emery cloth 60 #, 425 473 1.5 (mm)
 Wheel Speed 40 1RPM
 Shift screw 6teeth / inch
 Limit rotation 85 rotate
 Set rotation 84 rotate (about 40M)
 Return form Electric autom atic reset
 Drive Power 40W; 1 / 30
 Power 220V 50Hz
 Machine Dimensions 600 330 420 (mm)
 Machine Weight  75kg


Testing standards
DIN-53516; ISO-4649;

 Roll diameter  150mm
 Fixture lateral displacement 4.2mm/hoop each lap
 Rooling speed 40rpm
 Volume 95*66*31cm
 Weight 50kg
 Power  220V 50HZ


What is abrasion resistance test?
Abrasion testing is used to test the abrasive resistance of solid materials. Materials such as metals, composites, ceramics, and thick (weld overlays and thermal spray) coatings can be tested with these methods.
