Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-L22 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1 pcs/ month |
| Standards: | ISO 5402, SATRA TM55, DIN 53351, BS-3144, BS EN 13512, JIS-K 6545, CNS-7705 | Bending Angle: | 22.5° |
|---|---|---|---|
| Bend Speed: | 100± 5cm | Weight: | 78kg |
| Dimensions: | 500× 580× 300mm | Power Supply: | AC220V, 20A |
| High Light: | leather softness tester,rubber testing equipment |
||

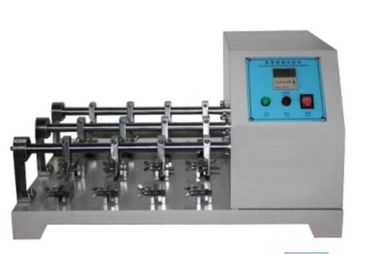

Leather Testing Equipment SATRA TM55 Leather Flexing Tester for Flexometer Test
Leather Flexing Tester applies to the scratching resistance test of leather, lining, fabric and the similar material at room temperature. One side face of the sample is as the inner surface and the other side face as the outside surface and bend this surface back and forth, write down the times that the sample have break; Or set the breakage time, then take it out and observe the degree it break
Fixture 12 Groups
It is designed for flexing resistance test to bending or other types of failure at flexing creases. Bally Style Flexometer complies with ISO 5402, SATRA TM55, etc.
Specification
| Specimens test block 70× 45mm, attach cutting knife | |
| Bending Angle | 22.5° |
| Bend speed | 100± 5cm |
| Counter LCD display | 0-999999 Automatic shutdown |
| Machine Size | 500× 580× 300mm |
| Weight | 78kg |
| Power | AC220V, 20A |
Testing Standards
ISO 5402,SATRA TM55, DIN 53351, BS-3144, BS EN 13512, JIS-K 6545, CNS-7705
Contact Person: Kate Guo
Tel: 13310805373
Fax: 86-769-38818154
