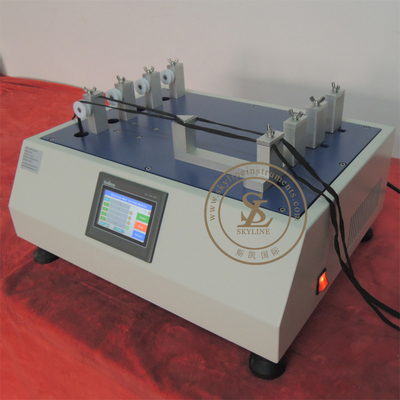

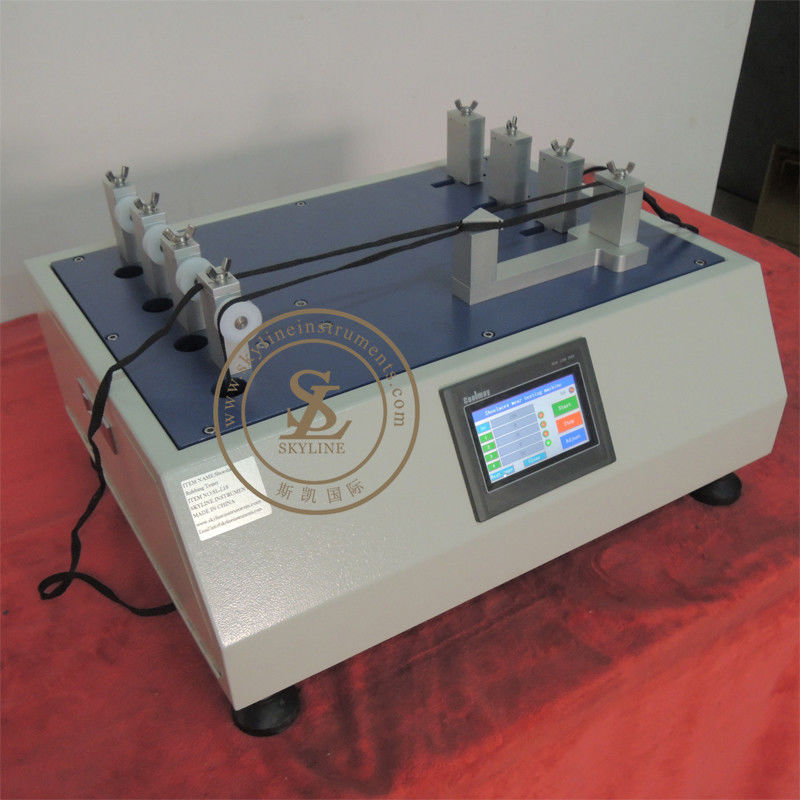

SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester

SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester

  • SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
  • SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
  • SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
  • SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
SATRA PM 154 Rub Resistance Tester , 4 Test Groups Shoelace Abrasion Resistance Tester
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L18
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Shoelace Rubbing Resistant Tester Movable Fixture Stroke: 35± 2 Mm
Test Speed: 60 ± 6 Cyles/min Weight: 50kg
Standards: DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226
High Light:

rub resistance tester

,

shoe wear tester

SATRA PM154 Footwear Testing Equipment 4 Test Groups Shoeslace Abrasion Resistant Tester



Use

This machine is used to test the rubbing resistance for shoelace of cotton, hemp, chemical fiber or other materials.


Product information
This machine is designed for the resistance of all shoelaces to abrasion. Two shoelaces are horizontally crossed in a moveable clamp, rubbing against each other, so as to determine their abrasive resistance.4 sets of specimens can be tested once.


Technical parameters

 Test position  4 groups
 Control  Touch-screen control, 0~999,999
 Min. Separation between movable and fixed fixtures  280 ±50 mm
 Movable fixture stroke  35± 2 mm
 Test speed  60 ± 6 cyles/min
 Profile board  Angle 52.5degree; Length120 mm
 Stainless metal strip  W: 25mm, L: 250mm
 Weight  250 ± 3g
 Power supply  1phase AC 220V 50/60HZ
 Dimensions ( L x W x H )  66 x 58 x 42cm
 Weight  50 kg
 Standards

 DIN 4843

SATRA TM 154

ISO 22774

QB/T 2226



How is abrasion resistance test done?

Abrasion resistance tests are performed by rubbing a printed sample with an unprinted one to simulate the actual conditions.
