Name: ISO 18895 EN 12958 Footwear Testing Equipment Steel Shank Fatigue Resistance Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L12
Price: 4,500.00 USD
Availability: InStock

Home Products Footwear Testing Equipment

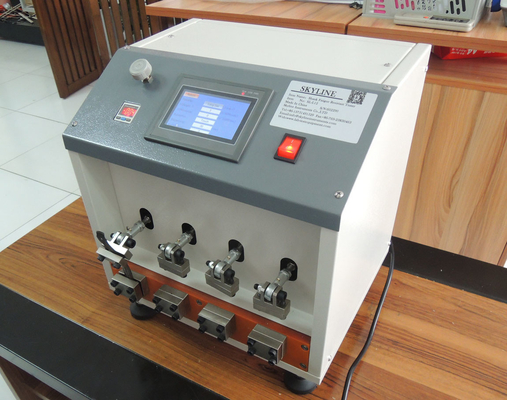

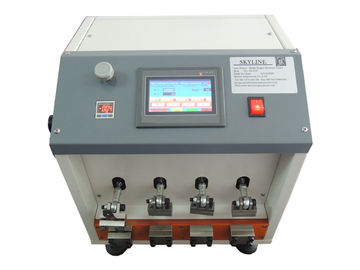

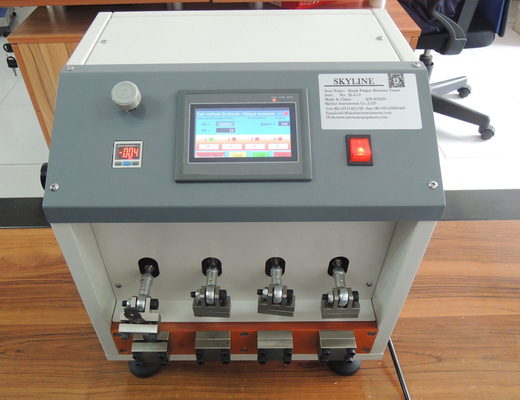

ISO 18895 EN 12958 Footwear Testing Equipment Steel Shank Fatigue Resistance Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-L12

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	35 work days
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

Imposed In The Sample Loop Force:	5±0.2KG	Test Speed:	0-300cpm
The Distance Between The Fixtures:	7±0.1cm	Weight:	90kg
Volume:	503040cm	Standards:	ISO 18895 EN 12958
Highlight:	rub resistance tester , shoe wear tester

ISO 18895 EN 12958 Footwear Tesitng Equipment Steel Shank Fatigue Resistant Tester

Production Information
Shank fatigue resistant test is suitable for the test shoes with the core of the resistance to fatigue.

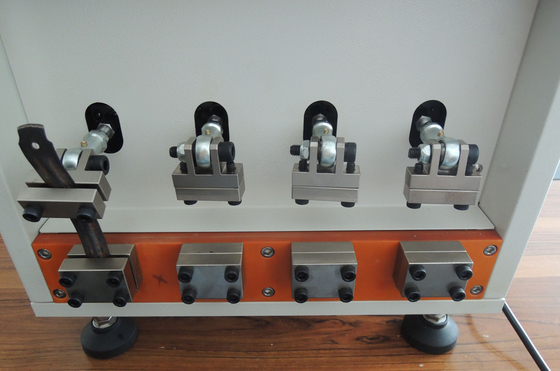

The principle is the core of both ends with two sets of clamps fixed, and subjected to a certain amount of force applied to the fixture at the core frequency per second, four cycles reciprocating bending movement
View the sample after a certain number of the extent of the damage.

Technical Parameters

Test speed	0-300cpm
Imposed in the sample loop force	5±0.2KG
The distance between the fixtures	7±0.1cm
Counter Six figure LCD	0-999 999
Volume	503040cm
Weight	90kg
Power	AC220V 0.4KIW 50Hz

Testing Standards

ISO 18895 EN 12958

ISO 18895 EN 12958 Footwear Testing Equipment Steel Shank Fatigue Resistance Tester 0

Why testing is important in footwear?

Why Do You Need to Test Your Footwear Product? ... While styling and comfort are among the key attributes a consumer looks for in footwear, meeting standards of performance, durability and safety are also important. In addition, conforming to the increasing number of regulatory guidelines and laws is imperative.
