| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-S19 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | neogitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit / month |
| SKYLINE: | 45 Degree Automatic Flammability Tester | Standards: | ASTM D1230, FTMS191-5908, CFR 16-1610, CALIF TB117 |
|---|---|---|---|
| Ignition Time: | 0.1s Can Be Set | Dimension: | 400 X 300 X 500mm (L*W*H) |
| Weight: | 45kg | PLC Power: | AC 220V / 50Hz / 2A |
| Sample Size: | 50mm*150mm | Bristle Load: | 150gf |
| High Light: | horizontal flammability tester,flammability test chamber |
||

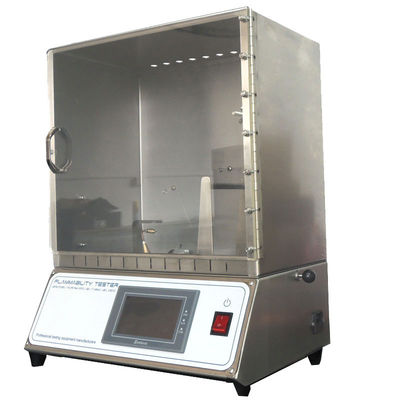

CRF 16-1610 Toys 45 Degree Automatic Flammability Test Apparatus / Equipment
CRF 16-1610 45 Degree Flammability Tester.pdf
Application
This machine is suitable for testing the performance of textiles in children's pajamas and pants, or in the hands of consumers or from consumers. Tests for the flammability of textiles used in the manufacture of garments, the introduction of three types of flammability, the determination of the classification of textiles, and the use of single or multi-layer fabrics that are commercially viable as unsuitable garments and have the potential to burn. caveat.
Description
To determine the burning characteristics of textiles under controlled conditions. Stainless steel test cabinet with glass observation panel provided with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.
Principle
Under the specified conditions, the sample is placed at an angle of 45°, the sample is ignited for 1 s, and the time required for the sample to burn upward by a certain distance is used as a measure for assessing the degree of burning of the textile. Fabrics with surface piles, the ignition or melting of the base fabric as an additional indicator of the severity of the combustion, but need to be noted.
Technical parameters
| Time Display | 0-99.9S |
| Test box | 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm |
| Sample holder | 45° |
| Sample holder | upper plate slotted 38mm*152mm |
| Sample size | 50mm*150mm |
| Bristle load | 150gf |
| Resolving Capability | 0.1S |
| Ignition time | 1s or set it Set arbitrary |
| Dimensions | 420 x 260 x 520mm (L*W*H) |
| Power | AC 220V / 50Hz / 2A |
| Standards | ASTM D1230, CRF 16-1610 |
| Weight | 20kg |
The distance between the nozzle axis and the rotating shaft: 44mm
The nozzle is away from the sample surface: 8mm
Fire mouth distance marking line: 127mm
ASTM 45 Degree Flammability Tester.pdf
Please review video of the 45 Degree Automatic Flammability Tester operation as below link:
https://youtu.be/LkLZ_NMmh08
Burner Fixture
Brush
What is flammability test for fabrics?
In the US flammability test, a standard flame 5/8 of an inch long is lowered onto the fabric specimen, which is from a garment or production fabric, at a 45 angle for one second. This configuration is used to approximate the position of fabric during wearing.
