EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys

Name: EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings / Slide Outdoor Toys
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S158
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-S158
MOQ:	1 unit
Price:	negoitable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SKYLINE:

Horizontal Thrust Tester For Swings And Slide

Standard:

ISO8124-4 6.1.2/ 6.1.4

Motor:

4 Servo Actuators

Direction:

Horizontal

Loading Point Height:

30-180cm

Material:

Alu 80*80 Frame

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

swing durability tester

swings testing equipment

EN71-8 Horizontal Thrust Tester

Product Description

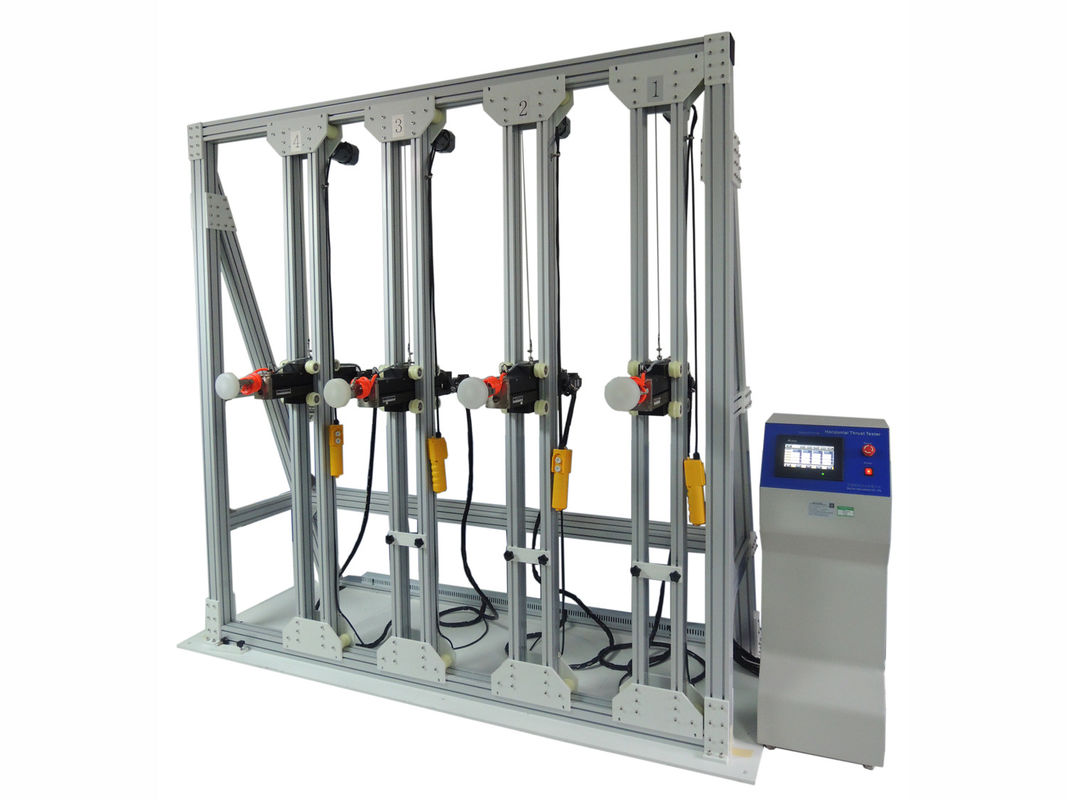

EN71-8 Toys Testing Equipment Horizontal Thrust Tester for Swings and Slide

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.

Main parameters

Load cell capacity	0-2500N
Accuracy	+/-0.5%
Direction	Horizontal
No of loading advice	4 in total
Loading Point height	30-180cm
Motor	4 servo actuators
Controller	PLC+ Touch screen
Test frame	Alu 80*80 cm frame

Standards
ISO8124-4 6.1.2/ 6.1.4

Procedure

Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal surface.

For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with the anchors fixed to the standing surface in accordance with the manufacturer's instructions.

On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the swinging direction. Where a swing element has multiple suspension points, distribute the load equally between the points.
Forces on multiple suspension points shall be applied in the same direction simultaneously.
Observe whether the toy tips over

Horizontal Thrust Tester For Swings And Slide.pdf
