Name: Nail Bed Flammability Testing Equipment
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S25
Price: 4,500.00 USD
Availability: InStock

Home Products Flammability Testing Equipment

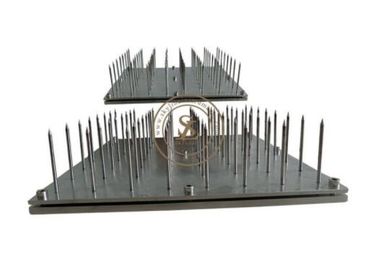

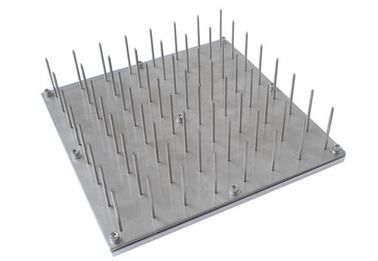

Nail Bed Flammability Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S25

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	neogitable
Packaging Details:	Plywood case
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Nail Bed Flammability Tester	Standards:	CFR1510, ASTM F963-4.6.2
Apart From The Edge:	0.31inches (7.8mm)	Dimension:	10-32x0.38inches (LG)
Screw Spacing:	0.62inches (15.7mm)	Outside Dimension:	Approx. 254×254mm (1×1inches)
Highlight:	flammability test chamber , flammability test apparatus

Solid and Soft Toys Flammability Testing Equipment Nail Bed Flammability Testing Equipment

Application

The tester is designed for determining the flammability of cloth toys and plush toys, used in the detection of flammability of flammable hair, and recording the burning time, to make a assessment whether the flammability of the burning part meet the requirement of standards.

Product information

The tester is used as test fixture in the flammability test of solid and soft toys;

Place the prepared sample in a draft-free area that can be ventilated and cleared after each test;

A specified ignition source is acted on the sample until ignition occurs. Observe the combustion state of sample and assess its flammability.

Technical parameters

Items		Parameters
Socket Wrench Screw 1	Material	Stainless Steel
	Dimension	# 10-32x0.38inches (LG)
	Quantity	9
	Apart from the edge	0.31inches (7.8mm)
	Screw Spacing	1.25inches (31.75mm)
Nail 2	Material	Stainless Steel
	Dimension	# 8d×2.50 inches (LG)
	Quantity	64
	Apart from the edge	0.62inches (15.7mm)
	Screw Spacing	4.69 inches (119mm)
Up plate-stainless steel plate 3		0.12×10.12×10.12inches (3×257×257mm) (LG)
Bottom plate-stainless steel plate 4		0.25×10.00×10.06inches (6.35×254×255.5mm) (LG)
Outside dimension		Approx. 254×254mm (1×1inches)

Standard Configurations

Nail Bed Flammable Tester

Burning Paraffin Candle.

Nail Bed Flammability Testing Equipment 0
