Name: Horizontal Vertical Flammability Testing Equipment
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S29
Price: 4,500.00 USD
Availability: InStock

Home Products Flammability Testing Equipment

Horizontal Vertical Flammability Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-S29

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	neogitable
Packaging Details:	Plywood case
Delivery Time:	10 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1 unit / month

Contact Now

Detailed Product Description

SKYLINE:	Vertical Flammability Tester	Standards:	UL 94-2006 IEC 60695-11-3 IEC 60695-11-4 GB/T5169.15 16 17 22-2008
Timer:	0-999.9s+/-0.1s (adjustable)	Flame Height::	20mm+/-2mm To 180mm+/-10mm(adjustable)
Weight:	128kg	Gas:	98% Methane
Highlight:	horizontal flammability tester , flammability test chamber

IEC60695-11-3 UL94 Horizontal-Vertical Flame Chamber
Product information
Horizontal and Vertical Flammability Testing Machine
UL 94 flame chamber. Horizontal flame chamber, vertical flame chamber
For the flammability testing of plastic materials used in consumer electric devices and appliances. Stainless steel construction with black interior and large sliding window for easy viewing. Includes a fully adjustable specimen support and precision gas flow controls.

Technical parameters

Kinds	500W(5V class )	50W(HB/Vclass)
Test Flame	500W(burning test for V-0,V-1,V-2 classification)	50W(burning test for V-0,V-1,V-2 classification)
Burner Tube	Internal diameter: Φ 9.5mm±0.3mm	Internal diameter: Φ 9.5mm±0.3mm,
Burning Angle	0°,20°,45°	0°,20°,45°
Thermocouple	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)
Thermocouple Size	0.5 mm	0.5 mm
Standard Copper Block	9mm±0.01mm, weight:10g±005g before drilling.	5.5mm±0.01mm, weight:76g±0.01g before drilling.
Time for Temperature to Increase	From 100°C±5°C to 700°C±3°C; 54s±2s (preset)	From 100°C±5°C to 700°C±3°C; 44s±2s (preset)
Gas Flow	965±32ml/min	105±10ml/min
Gas Supply	methane,min.98% purity	methane,min.98% purity
Water-column	125m±5mm	‹10mm
Test Time	54±2s	44±2s
Flame Height Indicator	40±1mm	20±1mm
Volume Of Chamber	>0.5m³, black interior	>0.5m³, black interior
Conform to standard	UL94,IEC60695-11-3,IEC60695-11-20	UL94,IEC60695-11-4,IEC60695-11-10

Testing Standards
UL 94-2006 IEC 60695-11-3 IEC 60695-11-4
UL94 Horizontal & Vertical Flammability Tester.pdf...
Horizontal Vertical Flammability Testing Equipment 0

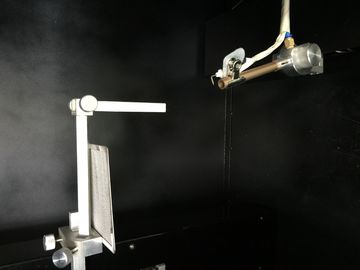

Specimen holder

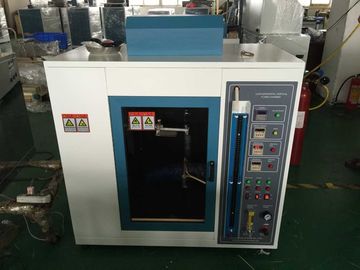

Controll panel

How do you test for flammability?

The various flammability tests are all similar in that they (1) orient a test sample either horizontally or vertically and place it in the test chamber; (2) apply a flame from a Bunsen Burner for a specified time; and (3) measure the time or distance that the flame propagates.
