Name: IULTCS Veslic Leather Testing Equipment PM 173 Abrasion Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-LC65
Price: 4,500.00 USD
Availability: InStock

Home Products Leather Testing Equipment

IULTCS Veslic Leather Testing Equipment PM 173 Abrasion Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-LC65

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Plywood case
Delivery Time:	15 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	1 pcs/ month

Contact Now

Detailed Product Description

Standards:	ISO 11640, SATRA PM 173, QB/T 2537-2001, DIN 4843, QB/T 2226, GB/T 20991 Section 7.3	Area Of Testing Head:	15mm X 15mm
Movement Speed:	40 +/- 2 Times / Min.	Weight:	25kg
Dimensions:	490x340x550mm (LxWxH)	Power Supply:	1phase AC 220V 50/60HZ
Highlight:	leather testing machine , leather softness tester

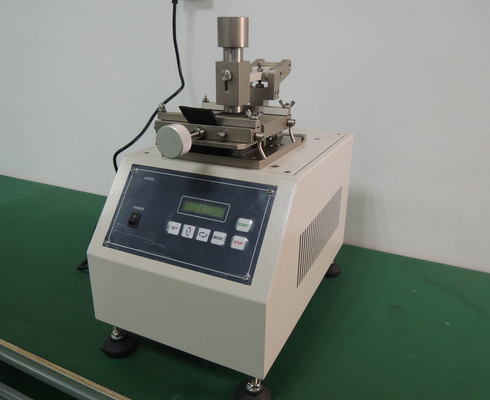

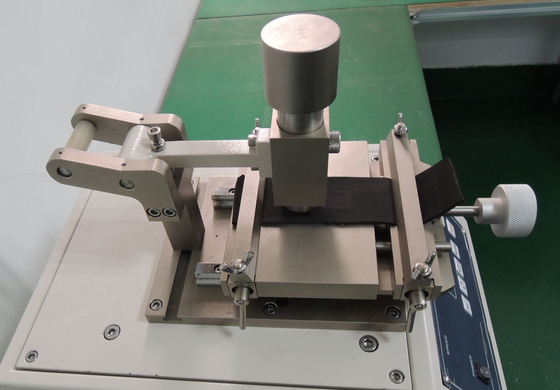

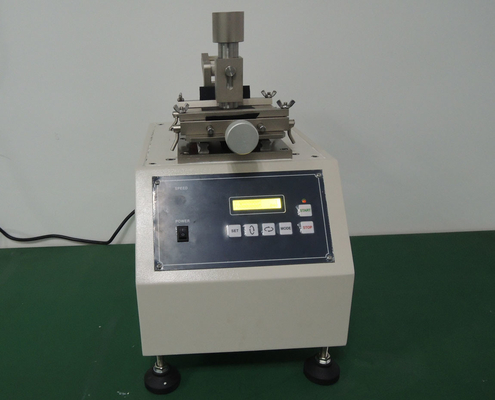

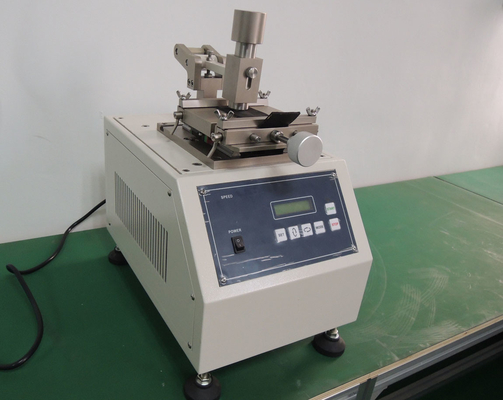

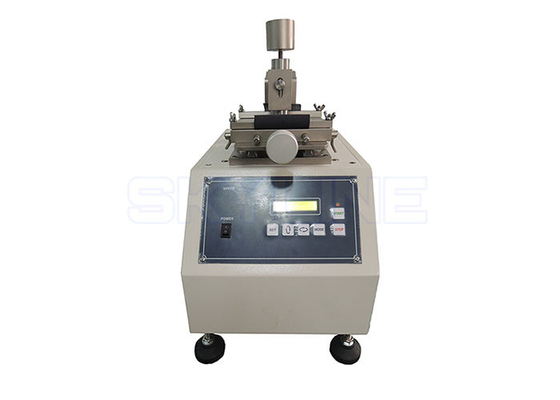

SATRA Leather Testing Equipment PM 173 IULTCS Veslic Leather Abrasion Tester

Product information

IULTCS & Veslic Leather Abrasion Tester is designed to carry out the rub fastness test on the surface of leather so as to determine the amount of marring of the leather surface or finish and the amount of color transfer to the rubbing pad.

Application

This machine is used for color fastness testing of leather, plastic and textile. Under the specified pressure, let white wool felt to do reciprocating abrasion to the surface of dye sample. After a specified count, to assess the color fastness of sample by checking the color change and fading of sample and the discoloration of white wool felt. It can be used for dry rubbing test and wet rubbing test.

Technical parameters

Position	1
Area of testing head	15mm x 15mm
Movement speed	40 ± 2 times / min
Rubbing stroke	35 ± 2 mm
Rubbing finger mass	500g
Additional weight mass	500g
Fixtures distance	80mm
Sample size	120x20mm
Tension extension range of sample	0 ~ 20%
Power supply	1phase AC 220V 50/60HZ
Dimensions (L x W x H)	490x340x550mm
Weight	33kg
Standards	DIN 4843, ISO 11640, SATRA PM 173, QB/T 2537, GB/T 20991 section 7.3, EN ISO20344 section 7.3, AS/NZS 2210.2 section7.3
