Luggage Down Stairs Testing Machine QB/T 2920 Road Condition Simulated Tester for Suitcase Wheels

Name: Luggage Down Stairs Testing Machine QB/T 2920 Road Condition Simulated Tester for Suitcase Wheels
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-TL02
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-TL02
MOQ:	1 Unit
Price:	Negotiable
Payment Terms:	T/T,L/C,Western Union,
Supply Ability:	20 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, Calibration Certificate

SKYLINE:

Luggage Down Stairs Testing Machine

Model:

SL-TL02

Standard:

QB/T 2920-2007

Test Speed:

0-10 Km/h Adjustable

Load Capacity:

Max 50 Kg

Stair Height:

Up To 300 Mm Per Step

Test Mode:

Two-wheel / Four-wheel

Control System:

PLC With 7-inch Touch Screen

Counter:

LCD Digital, 0-999,999 Cycles

Power Supply:

AC 220V, 50/60 Hz

Dimensions:

1880 X 1800 X 1640 Mm (LxWxH)

Weight:

Approx. 350 Kg

Packaging Details:

Standard export plywood case with moisture-proof and shock-proof packing

Supply Ability:

20 Sets per Month

Highlight:

Luggage Down Stairs Tester

Suitcase Wheel Durability Machine

QB/T 2920 Road Condition Tester

Product Description

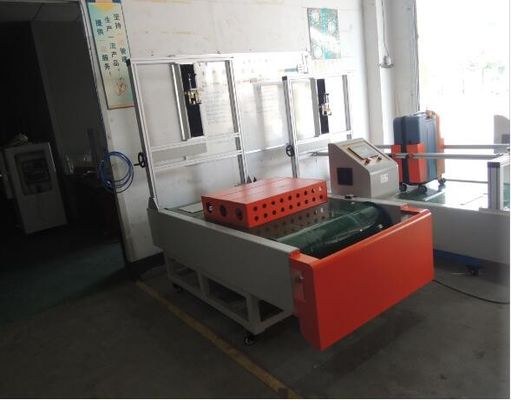

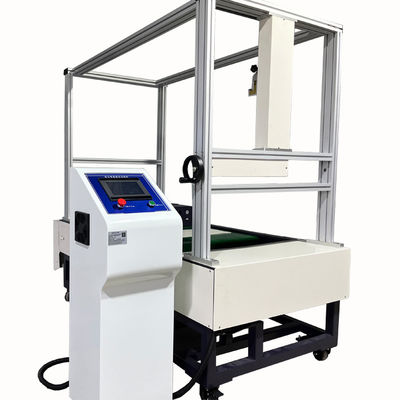

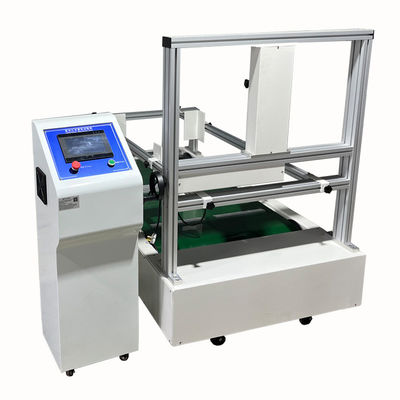

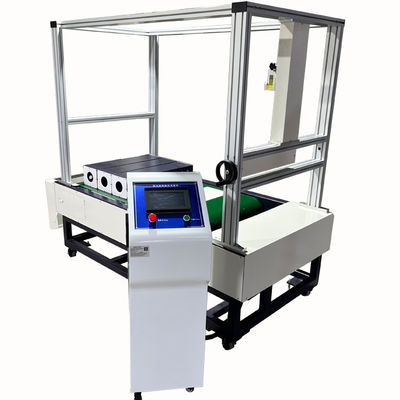

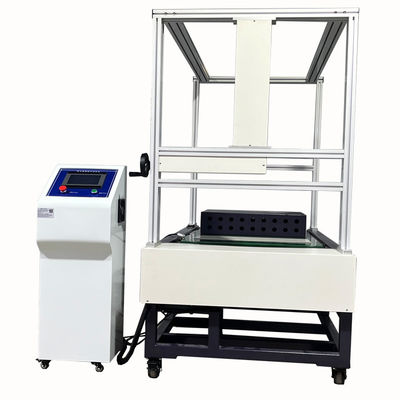

Automatic Luggage Down Stairs Testing Machine SL-TL02

SKYLINE SL-TL02 luggage down stairs testing machine simulates the real road conditions a suitcase experiences when being dragged up and down stairs, evaluating the durability of luggage wheels, body frame and telescopic handle under repeated impact and abrasion.

Product Overview

Widely used by luggage manufacturers, bag factories, third-party laboratories and QC departments. By simulating the stair-climbing process, it evaluates the wear resistance of castors and the structural strength of the suitcase shell.

Test Principle

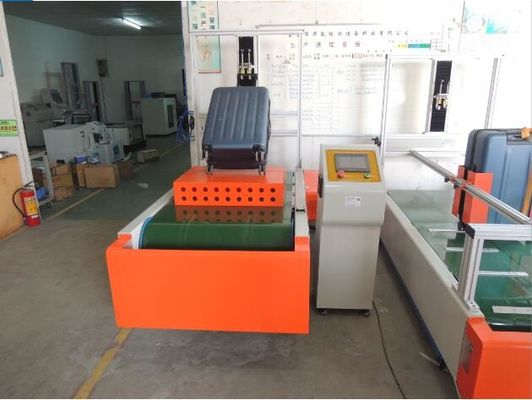

A loaded sample is driven to run up and down the simulated stairs continuously. The PLC control system records the number of cycles. After the preset cycles, the operator inspects wheel wear, handle deformation and shell damage to judge whether the product meets the standard.

Key Features

PLC control with touch screen, easy parameter setting and data display
Adjustable speed 0-10 km/h to simulate different walking speeds
Interchangeable two-wheel and four-wheel test modes
Heavy-duty steel frame with powder coating for long-term stability
Automatic stop and alarm when the preset cycle number is reached
High-precision LCD counter with a range of 0 to 999,999 cycles

Applicable Standards

QB/T 2920-2007, QB/T 2155 and other equivalent luggage testing standards.

Technical Specifications

Model	SL-TL02
Test Speed	0-10 km/h adjustable
Load Capacity	Max 50 kg
Stair Height	Up to 300 mm per step
Test Mode	Two-wheel / four-wheel
Counter	LCD digital, 0-999,999 cycles
Control System	PLC with 7-inch touch screen
Power Supply	AC 220V, 50/60 Hz
Dimensions	1880 x 1800 x 1640 mm (LxWxH)
Weight	Approx. 350 kg

Applications

Suitcases, trolley bags, backpacks, school bags, luggage wheels and castors, travel cases.

Packing & Delivery

Packed in standard export plywood case with moisture-proof and shock-proof protection. Delivery within 25-35 working days after deposit.
