SL-T07I Mattress Rolling Tester Roller Durability Test Machine

Name: SL-T07I Mattress Rolling Tester Roller Durability Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T07I
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T07I
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

2kN Sensor*1

Servo Motor:

0.4kW*1、1.5kW*1

Cylinder Stroke:

Stroke 500mm, Max Thrust 1.39kN

Test Speed:

10～20 Times/min

Power Supply:

220V,50HZ

Air Source:

≥6kg/cm²

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

mattress rolling tester machine

mattress durability test machine

SL-T07I mattress testing machine

Product Description

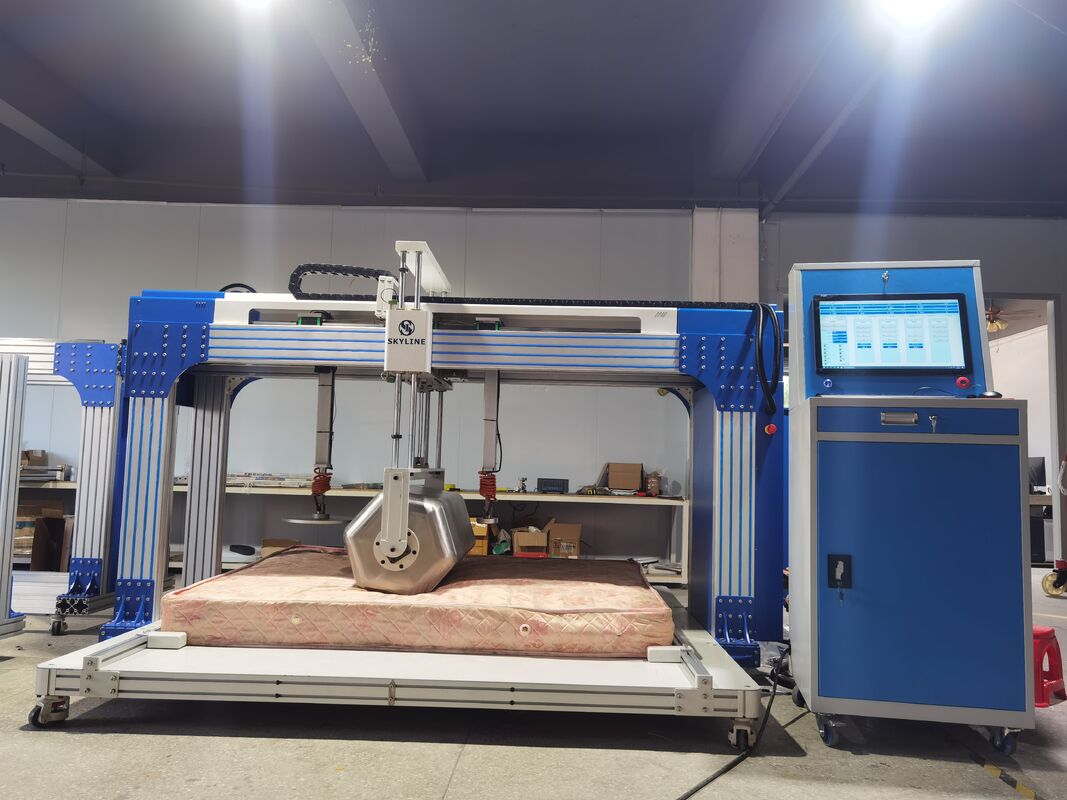

SL-T07I Mattress Rolling Tester Roller Durability Test Machine

This advanced testing machine evaluates spring mattress hardness levels and performs comprehensive durability testing for mattress surfaces and rollers. The system analyzes test data before and after evaluations to provide accurate performance assessments.

Primary Testing Capabilities

Records loading process curves and evaluates hardness values according to relevant test data. Meets both ASTM F1566 and EN1957 standards with the following main functions:

Rolling Durability Test (ASTM F1566 or EN 1957 test standard optional)
Mattress Hardness Test (ASTM F1566 or EN 1957 test standard optional)
Height Lost Test (EN 1957 Optional)
Mattress Edge Test (EN 1725 Optional)

Technical Specifications

Frame Material	High-quality aluminum construction
Control System	High precision ARAM controller with Delta PLC and Servo Motors
Motor Configuration	Dual Delta servo motors for vertical roller movement and horizontal drum drive
User Interface	Large colorful touch panel with clear, easy-to-operate software

Packaging Details

Estimated Packaging Dimension	3000 × 1600 × 2000 mm
Estimated Gross Weight	1300 kg
HS Code	9024800000

Testing Standards Compliance

EN 1957 (140kg, EN Round Cylinder: 30000 cycles)

Key Features

High-quality aluminum frame with smart, elegant design
Delta brand PLC and Servo Motors for precision control
Dual motor configuration for vertical and horizontal movement
Integrated alarm device for safe operation monitoring
Electric roller lifting mechanism for easy operation
PLC controller with large colorful touch panel
Automatic stop function after preset cycles completion
Over moving limit protection system
Wooden roller for soft contact with mattress surfaces
