Paper Corner Strength Tester

Name: Paper Corner Strength Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-Z06B
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-Z06B
MOQ:	1
Price:	Negociate
Payment Terms:	T/T
Supply Ability:	1 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Poly wooden case

Supply Ability:

1 Set/Month

Highlight:

paper corner strength tester

lab testing equipment for paper

paper strength testing machine

Product Description

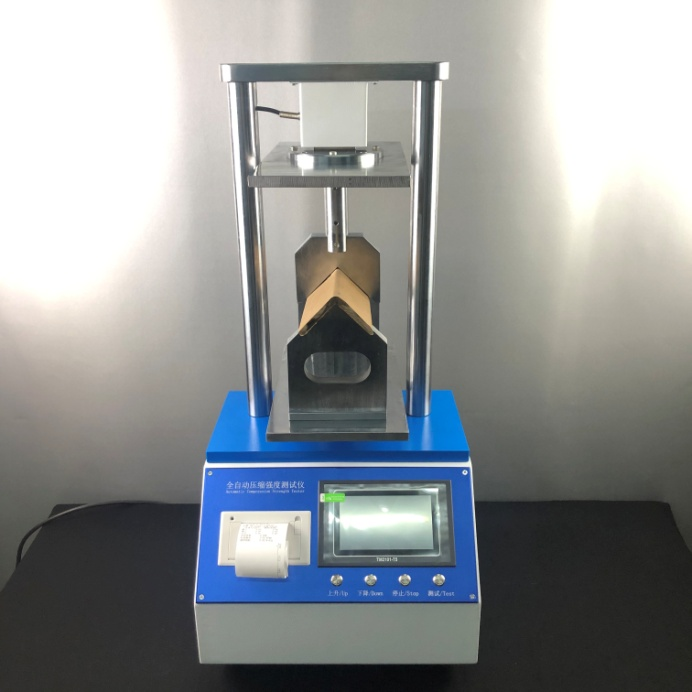

Paper Corner Strength Tester

The Paper Corner Strength Tester is a specialized testing instrument designed for measuring the compressive strength of paper corner protectors. This equipment is ideal for paper corner manufacturers and quality inspection agencies, providing accurate analysis of various paper corner types including L-shaped, U-shaped, bent, waterproof, wrapping, and shaped paper corners.

Compliance Standards

ASTM D 1838 | ISO 6521

Key Features

High-precision sensor technology for accurate strength measurement
Software-based numerical analysis and display of sample strength
Comprehensive testing capabilities for longitudinal compression and horizontal bending
Three-unit conversion: Kg/N/Lb (kilogram/Newton/pound)
Integrated printer for test data documentation

Testing Methodology

Longitudinal compression testing: Five 300mm specimens are placed vertically between compression plates and compressed at 100mm/min±2mm/min until crushing. The maximum compression value at break is recorded, with results averaged across all samples.

Technical Parameters

Parameter	Specification
Indication Error	±1%
Indication Variability	<1%
Resolution	0.1 N
Measurement Range	0 - 10000 N
Deformation Error	≤ ±1 mm
Platen Area	300×170×300mm
Platen Parallelism	≤1 mm
Working Stroke	5 - 300 mm
Sample Length	300mm
Longitudinal Compression Speed	10 ± 2 mm/min
Horizontal Bending Speed	100 ± 10 mm/min
Test Rate Range	10-100mm/min
Accuracy	±2%
Volume (Main Unit)	55×40×85cm
Weight (Main Unit)	70kg
Power Supply	1∮, AC 220V, 1.5A

Two Test Methods

1) Horizontal Test

2) Vertical Test
