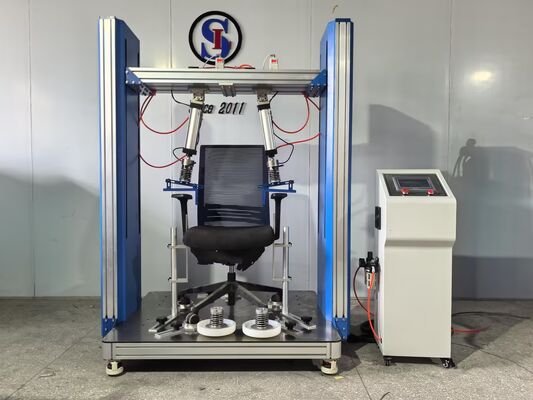

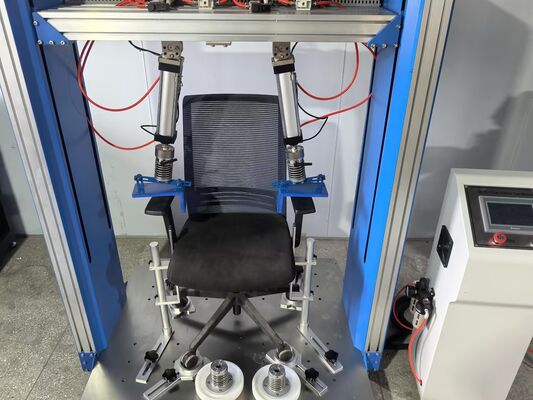

PLC BIFMA X5.1 Chair Arm and Leg Tester Static Test Machine Fatigue Test Machine

• Base Size: 1.5m (W) * 2m (L) * 2m (H)
• Vertical Posts: 2 units, 1.5m height
• Cross Bar: 1 unit, powered height adjustment

• Pneumatic pulley system for push/pull operations
• Height adjustment: 500-1500mm
• Minimum horizontal distance: 30mm (adjustable)
• Timer: 1 minute pull / 1 minute push cycle

• Uses same pulley system positioned under armrest
• Minimum vertical distance: 30mm (adjustable)
• Timer: 1 minute vertical downward force

• Cable/strap pulley system for 50,000 cycles
• Height adjustment: 500-780mm
• 6-digit counter control
• Speed: 10-30 cycles/minute

• Cable/strap pulley system for 10,000 cycles
• Flexible positioning on platform
• 6-digit counter
• Speed: 10-30 cycles/minute

• Cylinder Type: Double-acting cylinder
• Maximum Force: 2000 Newton
• Air Supply: 6 bar minimum

• ON/OFF controls
• LCD display for load meter, speed, cycle, and time
• Load sensing to prevent overload
• Force selector for predetermined test forces
• Air regulator with pressure indicator

• Emergency stop function with pneumatic cylinder retraction
• Automatic shutdown upon test sample failure
• Mechanical damage protection
• Power interruption safety stop
• Automatic cycle completion shutdown

• ANSI/BIFMA X5.1-2011 11.4 Front Corner Load-Ease Test-Cyclic-Off-center
• ANSI/BIFMA X5.1-2011 18 Leg Strength Test - Front and Side Application
• ANSI/BIFMA X5.1-2011 20 Footrest Durability Test-Vertical-Cyclic
• ANSI/BIFMA X5.1-2011 21 Arm Durability Test - Cyclic

Frequently Asked Questions

1. What is this equipment used for?
This tester evaluates chair armrests, legs, and footrests for static strength and fatigue durability. It simulates real-world loading to ensure seating products meet BIFMA X5.1 requirements before they reach the market.

2. What standards does it comply with?
It complies with ANSI/BIFMA X5.1-2011, specifically test methods 11.4 (front corner load), 18 (leg strength), 20 (footrest durability), and 21 (arm durability).

3. What types of chairs can be tested?
The machine accommodates most office and commercial seating with armrest heights from 500 to 780mm. The adjustable fixture system allows for various chair frame designs and sizes.

4. How does the force application work?
Two systems are used: a pneumatic pulley system for static strength tests (push/pull and vertical forces) and a cable/strap system for dynamic durability tests up to 50,000 cycles.

5. What safety features are included?
Emergency stop with cylinder retraction, overload sensing, mechanical damage protection, power interruption stop, and automatic shutdown upon specimen failure or cycle completion.

6. What are the power and air supply requirements?
The machine requires 1Φ, AC220V, 3A power supply and a minimum of 6 bar compressed air for the pneumatic system.
