ISO 340 and AS1334.10 Compliance Conveyer Belt Vertical Conveyor Burning Tester Flammability Testing Machine

Name: ISO 340 and AS1334.10 Compliance Conveyer Belt Vertical Conveyor Burning Tester Flammability Testing Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL856V
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-FL856V
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Materails:

Steel

Standards:

ISO340

Bunsen Burner:

The Inner Diameter Is 10.5mm

Bunsen Burner Rotation Angle:

0°～45° Adjustable

Thermocouple:

Type K Armor

Thermocouple Display Range:

0～1300℃

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

ISO 340 compliant conveyor belt tester

AS1334.10 vertical conveyor flammability machine

flammability testing equipment with compliance

Product Description

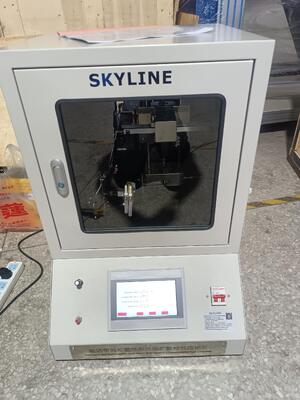

Conveyor Belt Vertical Burning Test Chamber

ISO 340 and AS 1334.10 compliant conveyor belt vertical and horizontal fire test machine for evaluating conveyor belt flammability and flame propagation characteristics.

Product Overview

This testing equipment is designed specifically for conveyor belts and steel cord conveyor belts with textile bodies, providing comprehensive evaluation of flammability and flame propagation characteristics of horizontally oriented conveyor belt samples.

Testing Methodology

The testing principle involves exposing the ends of horizontally oriented conveyor belt specimens to flames for a specified duration. The response to ignition sources is evaluated by measuring flame duration after burner removal and afterglow duration when air passes through the sample.

Technical Specifications

Parameter	Specification
Materials	Steel
Standards Compliance	ISO 340, AS 1334.10-1994
Bunsen Burner	Inner diameter 10.5mm
Bunsen Burner Rotation	0°～45° adjustable
Thermocouple	Type K armor
Thermocouple Range	0～1300℃
Ignition Time Setting	0～999.9s
Combustion Timing	0～999.9s
Test Flame Temperature	1000±20℃
Flame Ruler	50～150/180mm
Combustion Chamber	500mm x 500mm x 500mm
Combustion Gas	Propane gas, purity > 95%
Dimensions (WxDxH)	555 x 651 x 738mm
Weight	≈40kg
Power Supply	AC 220V±10%, 50～60Hz

Key Testing Definitions

Flame Duration: Continued burning after burner removal

Afterglow: Slow burning without flame

Flame Period: Total flame duration per test group

Afterglow Period: Total afterglow time per test group

Vertical Test: Conducted according to ISO 340-2022

Standards Compliance

Manufactured according to AS 1334.10-1994 and ISO 340-2022 standards for conveyor belt flammability testing requirements and methods, ensuring reliable and standardized testing procedures.
