Charpy Impact Testing Machine with High-precision Intelligent Controller, Carbon Fiber Pendulum Rod, and Imported Digital Encoder

Charpy Impact Testing Machine with High-precision Intelligent Controller, Carbon Fiber Pendulum Rod, and Imported Digital Encoder

Charpy Impact Testing Machine with High-precision Intelligent Controller, Carbon Fiber Pendulum Rod, and Imported Digital Encoder

Detail Information
Product Description
Detail Information
Highlight:

High-precision intelligent controller Impact Tester

,

Carbon fiber pendulum rod Charpy Tester

,

Imported high-resolution digital encoder Impact Testing Machine

Product Description
Charpy Impact Testing Machine
Product Overview

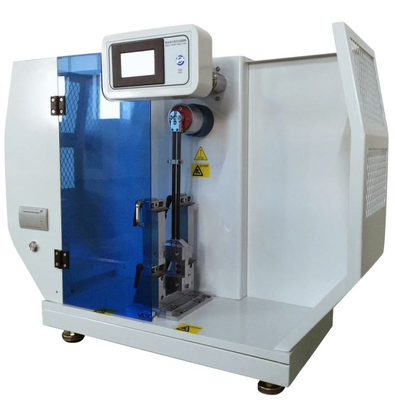

Charpy Impact Testing Machine with High-precision Intelligent Controller, Carbon Fiber Pendulum Rod, and Imported Digital Encoder 0

The Charpy impact tester is used to determine the impact toughness of non-metallic materials such as plastics, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials.

This machine features simple structure, convenient operation and high precision testing. The digital impact test machine utilizes high-precision encoder technology with characteristics of high accuracy, good stability and large measuring range. The digital measurement displays impact strength and average values, automatically corrects energy loss, and prints test reports.

Compliance Standards

ISO 179, GB/T 1043, JB/T 8762, GB/T18743

ISO 179-2000 "Determination of Charpy impact properties"

Key Features
  • High-precision intelligent controller with LCD display for intuitive and accurate data reading
  • Domestic use of carbon fiber pendulum rod improves material rigidity and focuses impact mass on pendulum centroid, enabling truly vibration-free impact testing with extended service life
  • Imported high-resolution digital encoder provides higher and more stable angle test accuracy
  • Aerodynamic hammer principle and imported ball bearings significantly reduce mechanical friction loss
  • Automatic calculation of final results with capacity to save 12 sets of test data and averages
  • Chinese and English operation interface with multiple unit options for test results (J/m, KJ/m², kg-cm/cm, ft-lb/in)
  • Built-in micro printer for immediate test data output
Technical Specifications
Parameter Specification
Charpy Pendulum Energy 1J, 2J, 4J, 5J
Impact Speed 2.9m/s
Pendulum Center to Impact Blade Distance 230mm
Impact Blade Edge Fillet Radius R=2mm±0.5mm
Angle of the Impact Blade 30°±1°
Pendulum Angle 150°
Energy Display Accuracy 0.01J
Display Mode Color Touch Screen (Chinese and English)
Angle Sensor Brand and Accuracy Original Imported Omron Encoder, Accuracy to 0.01°
Machine Weight 85kg
Power Supply Voltage AC220V±10% 50HZ
