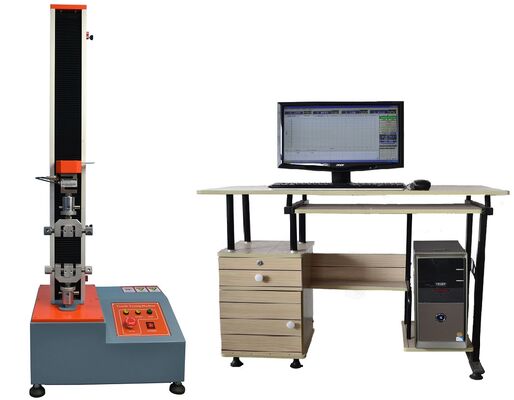

ISO 17708 Shoes Tensile Strength Testing Machine with 5-200kg Load Capacity and Touch Screen Control for Footwear Testing

ISO 17708 Shoes Tensile Strength Testing Machine with 5-200kg Load Capacity and Touch Screen Control for Footwear Testing

Brand Name:	SKYLINE
Model Number:	SL-T0E-1
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Load Capacity:

5-200kg

Accuracy:

Within ± 1%

Display Mode:

PLC Control,touch Screen

Test Speed:

50-300 Mm/min(Adjustable)

Machine Size:

Approx.500×400×1300mm

Machine Weight:

Approx.100Kg

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

5-200kg Load Capacity Shoes Tensile Strength Testing Machine

Touch Screen Control Footwear Testing Equipment

ISO 17708 Standard Testing Machine

Product Description

ISO 17708 Shoes Tensile Strength Testing Machine

This specialized testing equipment evaluates adhesion between shoe soles and uppers according to ISO 17708 standards, performing peel tests, layer separation analysis, and tear damage assessment for comprehensive quality control.

Machine Capabilities

The ISO 17708 testing machine conducts precise measurements of peeling resistance between upper materials and outsoles, separation between composite sole layers, and tear damage analysis. This versatile equipment serves multiple industries including textiles, rubber, plastics, synthetic leather, adhesive products, composite materials, electronics, and metals.

Key Features

Simple tensile testing design with user-friendly operation
Touch screen control system with intuitive interface
Variable frequency motor with precision speed control
Multiple test modes: tensile, compression, bending, shearing, peeling (90° and 180°), tearing
Automatic data storage for 10 test reference points
Real-time force value and displacement display
Built-in thermal printer for instant result output
Automatic calculation of averages and maximum values

Technical Specifications

Load Capacity	5-200kg
Force Measuring Accuracy	Within ±1% of indicated value
Display Mode	Touch screen control
Unit Switching	Kg, lb, N
Data Sampling Frequency	200 times/sec
Resolution	Maximum load 1/±25000 codes, overall resolution unchanged
Load Cell	Tension and compression sensors (standard)
Effective Test Width	150mm
Effective Stretch Space	800mm
Test Speed Range	50-300 mm/min (stepless speed regulation with 5-gear constant speed)
Displacement Measurement Accuracy	Within ±1% of indicated value
Breakpoint Ratio Setting	0-99% user-configurable
Safety Features	Up/down stroke limiting, overload protection (10% maximum load)
Fixture Configuration	One set of stretching clamps
Machine Dimensions	Approx. 500×400×1300mm
Machine Weight	Approx. 100kg

Operation & Control

The system utilizes touch screen controls to manage variable frequency motor rotation, driving T-shaped screws through speed reduction mechanisms to perform precise tensile or compression tests. Real-time force values from sensors are displayed alongside test displacement data, enabling accurate measurement of force settings and positioning displacement.
