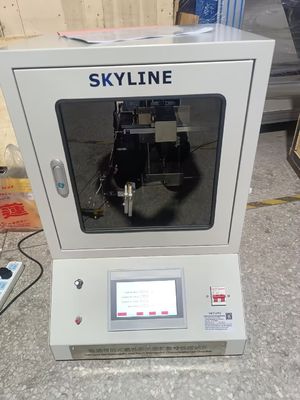

Steel Construction Conveyor Belt Vertical Burning Test Chamber with 500x500x500mm Chamber Dimensions for Vertical & Horizontal Testing

Steel Construction Conveyor Belt Vertical Burning Test Chamber with 500x500x500mm Chamber Dimensions for Vertical & Horizontal Testing

Brand Name:	SKYLINE
Model Number:	SL-FL856V
MOQ:	1 unit
Price:	negotiated
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	1 unit/ month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Materails:

Steel

Standards:

ISO340

Bunsen Burner:

The Inner Diameter Is 10.5mm

Bunsen Burner Rotation Angle:

0°～45° Adjustable

Thermocouple:

Type K Armor

Thermocouple Display Range:

0～1300℃

Packaging Details:

plywood case

Supply Ability:

1 unit/ month

Highlight:

500x500x500mm Chamber Dimensions Conveyor Belt Vertical Burning Test Chamber

Steel Construction Flammability Test Chamber

Vertical & Horizontal Testing Conveyor Belt Burning Tester

Product Description

AS1334.10 Conveyor Belt Vertical Burning Test Chamber ISO 340 Conveyor Belt Vertical & Horizontal Burning Tester

The Conveyor Belt Vertical Burning Test Chamber is designed for evaluating the flammability and flame propagation characteristics of conveyor belt materials under controlled conditions.

Scope

This tester is suitable for conveyor belts and steel cord conveyor belts with textile bodies, and is also applicable for testing the flammability characteristics of horizontally oriented conveyor belt samples.

Testing Principle

The test exposes horizontally oriented conveyor belt specimens to flames for a specified duration. The equipment evaluates the belt's response to ignition sources, measuring flame duration and afterglow time after flame removal, with an air stream applied to assess afterglow persistence.

Compliance Standards

Manufactured according to AS 1334.10 1994 "Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts" and ISO 340-2022 "Conveyor Belts - Laboratory Scale Flammability Characteristics - Requirements and Test Methods".

Key Definitions

Flame duration: Continued burning after burner removal (60s test period)
Afterglow: Slow burning without visible flame
Flame period: Total flame duration per test group
Afterglow period: Total afterglow time per test group
Acceptance test: Compliance verification per AS 1334.10 1994
Type certification: Comprehensive product quality evaluation
Vertical test: Testing method per ISO 340-2022

Technical Specifications

Parameter	Specification
Ignition time setting range	0-999.9s
Combustion timing range	0-999.9s
Bunsen burner	10.5mm inner diameter
Bunsen burner rotation angle	45°-90°
Thermocouple	Type K armor
Thermocouple display range	0-1300℃
Test flame temperature	1000±20℃
Flame ruler	50-150/180mm
Combustion chamber dimensions	500×500×500mm
Combustion gas	Propane gas (purity > 95%)
Dimensions (W×D×H)	555×651×738mm
Weight (approx.)	≈40kg
Power supply	AC 220V±10%, 50-60Hz
