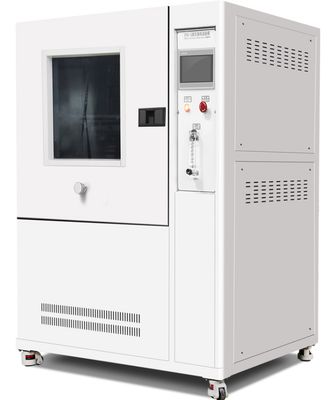

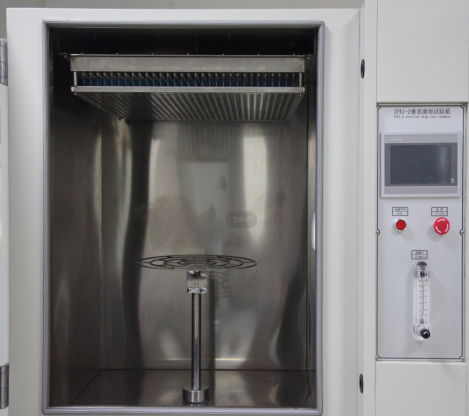

IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber with 600x600mm Dripping Area and 400-700mm Turntable Height

IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber with 600x600mm Dripping Area and 400-700mm Turntable Height

  • IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber with 600x600mm Dripping Area and 400-700mm Turntable Height
  • IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber with 600x600mm Dripping Area and 400-700mm Turntable Height
IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber with 600x600mm Dripping Area and 400-700mm Turntable Height
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-E131
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Dripping Area: About 600*600mm Turntable Height: 400-700mm
Dripping Height: Non-lifting (fixed Type) Turntable Bearing: 50KG
Tilt Of Turntable: 0° Or 15°(Horizontal Direction
Highlight:

600x600mm Dripping Area Rain Testing Chamber

,

400-700mm Turntable Height Drip Testing Chamber

,

50KG Turntable Bearing Environmental Test Machine

IPX1 IPX2 Closed Rain Vertical Drip Testing Chamber
IEC60529 Environment Test Machine Rain Tester
Product Description
This equipment tests the physical and related properties of products under simulated dripping climate conditions. It verifies performance to determine compliance with requirements, supporting product design, improvement, verification, and quality inspection.
Application Fields
  • Lighting fixtures
  • Household appliances
  • Auto parts
  • Other electronic and electrical products
Test Standard
IEC60529:1989 +A1:1999 +A2:2013
Technical Parameters
Parameter Specification
Raindrop board size L600*W600mm
Inner Dimension L800*D800*H1000mm
External Dimensions L1250*D1020*H1750mm
Drip hole diameter ￠0.4mm
Distance between drip holes 20*20 mm
Turntable diameter ￠600 mm
Rainfall capacity IPX1=1+0.5mm/min
IPX2=3+0.5mm/min
Flow regulation method Manual
Lifting method of drop board Non-lifting (fixed type)
Lifting height of turntable 400-700 mm
Bearing capacity 50KG
Tilting degree of turntable 0°or15°(Vertical)
Turntable speed 1 r/min(IPX1)
Test time 0-999 min
Safety protection device Leakage, water shortage, short-circuit protection
Power 220V, 50HZ/1.0KW
