Name: IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-E131
Price: 4,500.00 USD
Availability: InStock

Home Products Environmental Test Chamber

IEC60529:1989 Compliant Drip Tester with 800-1800mm Adjustable Dripping Height and 50KG Turntable Bearing for IPX1 IPX2 Testing

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-E131

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	25 working days
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Contact Now

Detailed Product Description

Dripping Area:	About 800*800mm	Turntable Height:	600mm
Dripping Height:	800—1800mm Can Adjust	Turntable Bearing:	50KG
Tilt Of Turntable:	0° Or 15°(Horizontal Direction
Highlight:	IEC60529:1989 Compliant Drip Tester , 800-1800mm Adjustable Dripping Height IPX1 IPX2 Tester , 50KG Turntable Bearing Environmental Test Chamber

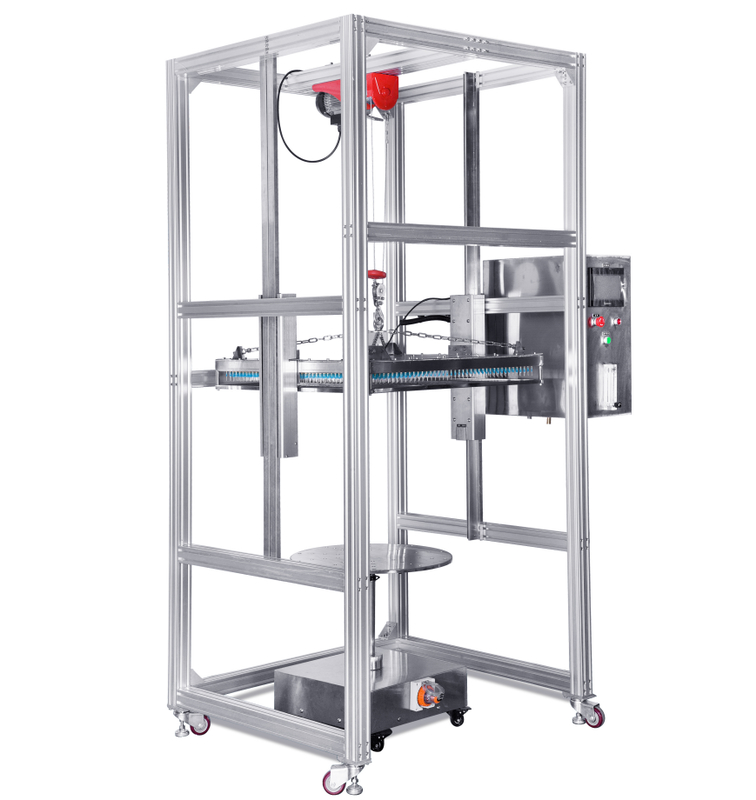

IEC60529:1989 Rainning Test Chamber / IPX1 IPX2 Open Type Vertical Drip Tester

Product Description

This equipment is designed to test the physical and related properties of electronic and electrical products, including lamps, electrical cabinets, components, automotive parts, and more under simulated dripping climate conditions. The tests help verify product performance against requirements, supporting design improvements, validation, and quality control.

Application Fields

Lighting fixtures
Household appliances
Auto parts
Other electronic and electrical products

Test Standard

IEC60529:1989 +A1:1999 +A2:2013

Technical Parameters

Parameter	Specification

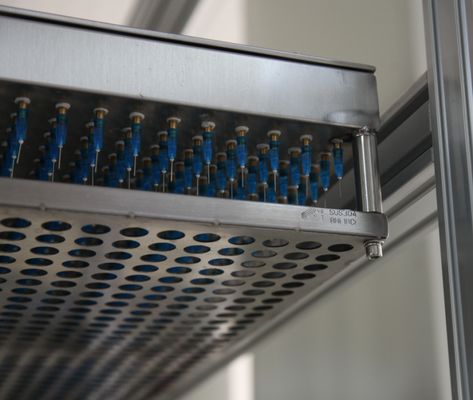

Raindrop board size	L600*W600mm
Inner Dimension	L800D800H1000mm
External Dimensions	L1320D1020H2420mm
Drip hole diameter	￠0.4mm
The distance between drip holes	20*20 mm
Turntable diameter	￠600 mm
Rainfall capacity	IPX1=1+0.5mm/min IPX2=3+0.5mm/min
Flow regulation method	Manual
Lifting method of drop board	800--1800mm (Adjustable)
Lifting height of turntable	Non-lifting (fixed type)
Bearing capacity	50KG
Tilting degree of turntable	0° or 15° (Horizontal)
Turntable speed	1 r/min (IPX1) or Settable
Test time	0-999 min
Safety protection device	Leakage, water shortage, short-circuit protection
