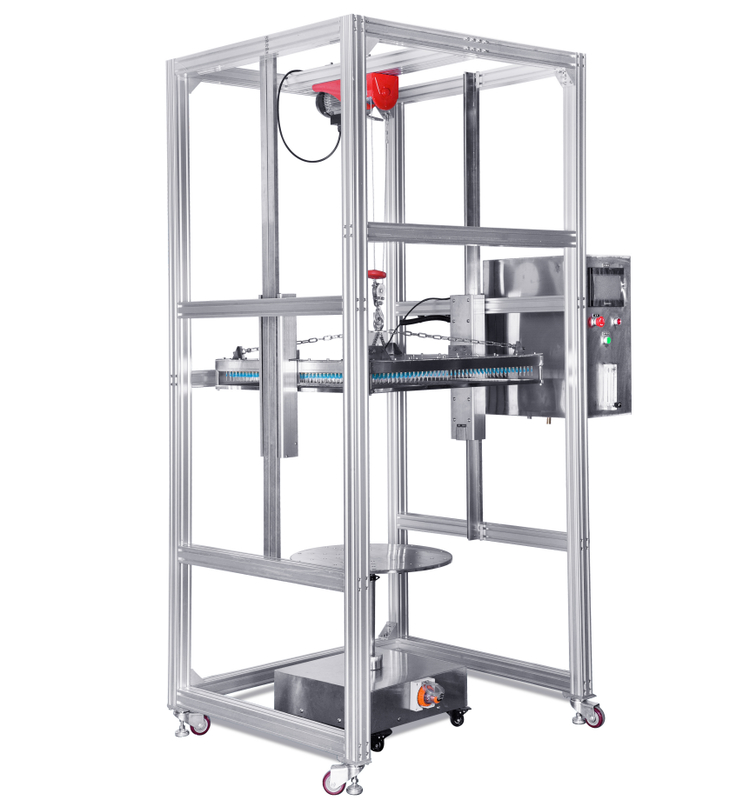

Name: IPX1 IPX2 Environmental Test Chamber / 800*800mm Open Type Vertical Drip Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-E131
Price: 4,500.00 USD
Availability: InStock

Home Products Environmental Test Chamber

IPX1 IPX2 Environmental Test Chamber / 800*800mm Open Type Vertical Drip Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-E131

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	25 working days
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Contact Now

Detailed Product Description

Dripping Area:	About 800*800mm	Turntable Height:	600mm
Dripping Height:	800—1800mm Can Adjust	Turntable Bearing:	50KG
Tilt Of Turntable:	0° Or 15°(Horizontal Direction
Highlight:	IPX1 IPX2 environmental test chamber , 800x800mm vertical drip tester , open type environmental test chamber

IPX1 IPX2 Environmental Test Chamber / 800*800mm Open Type Vertical Drip Tester

Product Description

The main function of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated dripping climate conditions. After testing, the performance of the product is determined through verification to see if it meets the requirements, which is convenient for the design, improvement, verification and factory inspection of the product.

Application Fields

Lighting fixtures
Household appliances
Auto parts
Other electronic and electrical products

Test Standard

IEC60529:1989 +A1:1999 +A2:2013

Technical Parameters

Parameter	Specification

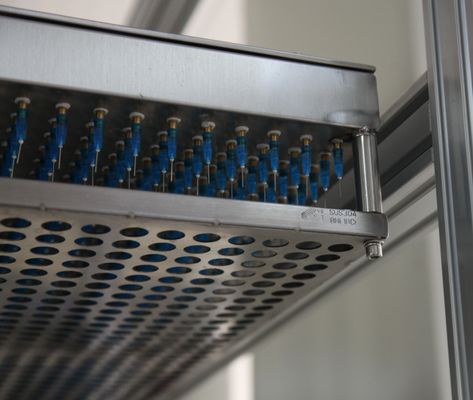

Raindrop board size	L600*W600mm
Inner Dimension	L800D800H1000mm
External Dimensions	L1320D1020H2420mm
Drip hole diameter	￠0.4mm
The distance between drip holes	20*20 mm
Turntable diameter	￠600 mm
Rainfall capacity	IPX1=1+0.5mm/min IPX2=3+0.5mm/min
Flow regulation method	Manual
Lifting method of drop board	800—1800mm(Adjustable)
Lifting height of turntable	Non-lifting (fixed type)
Bearing capacity	50KG
Tilting degree of turntable	0°or15°(Horizontal)
Turntable speed	1 r/min(IPX1) or Settable
Test time	0-999 min
Safety protection device	Leakage, water shortage, short-circuit protection
