Name: Mattress Testing Machine with 2kN Sensor for Mattress Hardness and Height Lost Tests
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T07I
Price: 4,500.00 USD
Availability: InStock

Home Products Mattress Testing Machine

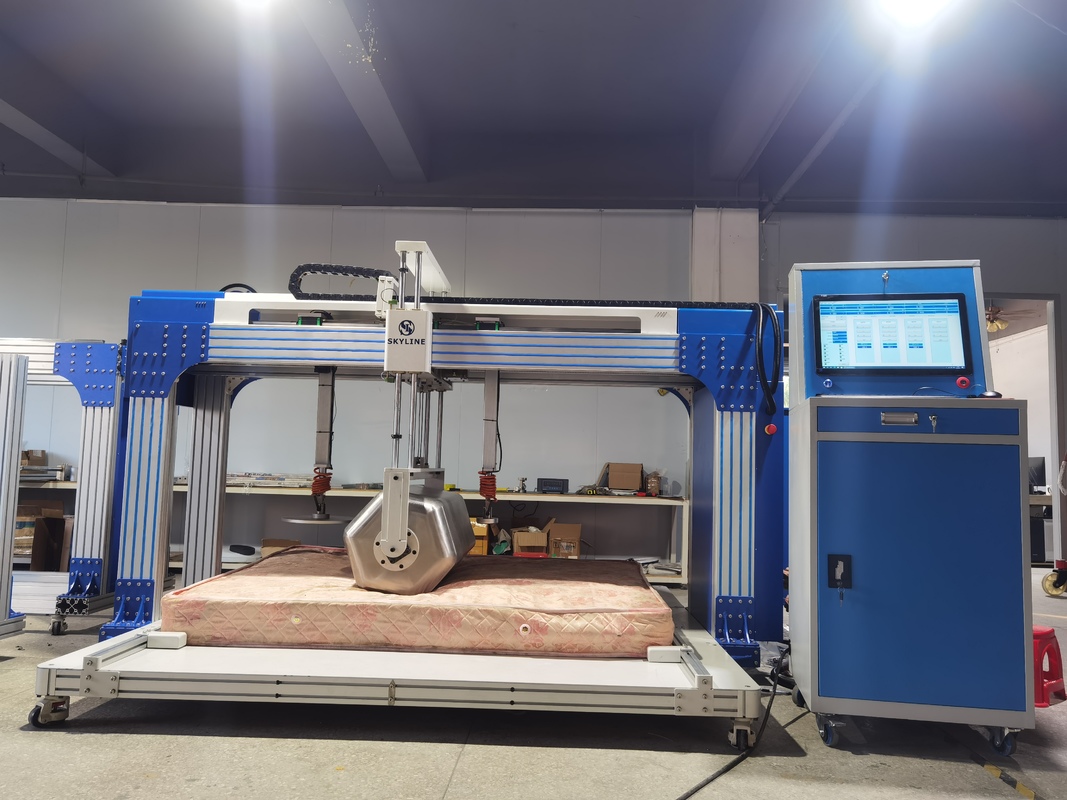

Mattress Testing Machine with 2kN Sensor for Mattress Hardness and Height Lost Tests

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-T07I

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	25 working days
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Contact Now

Detailed Product Description

Capacity:	2kN Sensor*1	Servo Motor:	0.4kW1、1.5kW1
Cylinder Stroke:	Stroke 500mm, Max Thrust 1.39kN	Test Speed:	10～20 Times/min
Power Supply:	220V,50HZ	Air Source:	≥6kg/cm²
Highlight:	2kN Sensor Mattress Testing Machine , Mattress Hardness Test Mattress Durability Tester , Height Lost Test Mattress Hardness Tester

Mattress Testing Machine EN 1957 with 10～20 times/min Test Speed and 500mm Stroke

Product Description

This professional mattress testing machine evaluates spring mattress hardness levels and performs durability tests for mattress surfaces and rollers. The system records loading process curves and assesses hardness values according to test data.

Key Features

Constructed with high-quality aluminum for durability and elegant appearance
Precision ARAM controller with intuitive software interface
Compliant with ASTM F1566 and EN1957 standards
Delta brand PLC and Servo Motors for reliable operation
Dual-motor configuration for vertical and horizontal movement
Integrated safety alarm system
Electric roller lift for easy operation
PC control with touch screen interface
Automatic stop after preset test cycles
Nylon roller for reduced wear and extended service life

Testing Capabilities

Rolling Durability Test (ASTM F1566 or EN 1957 standard)
Mattress Hardness Test (ASTM F1566 or EN 1957 standard)
Height Lost Test (EN 1957 standard)
Mattress Edge Test (EN 1725 standard)

Technical Specifications

Test Speed	10～20 times/min
Stroke	500mm
Testing Standard	EN 1957 (140kg, EN Round Cylinder: 30000 cycles)

Packaging Details

Estimated Dimensions	3000 * 1600 * 2000mm
Gross Weight	1300kg
HS Code	9024800000
